Anti-interference Device

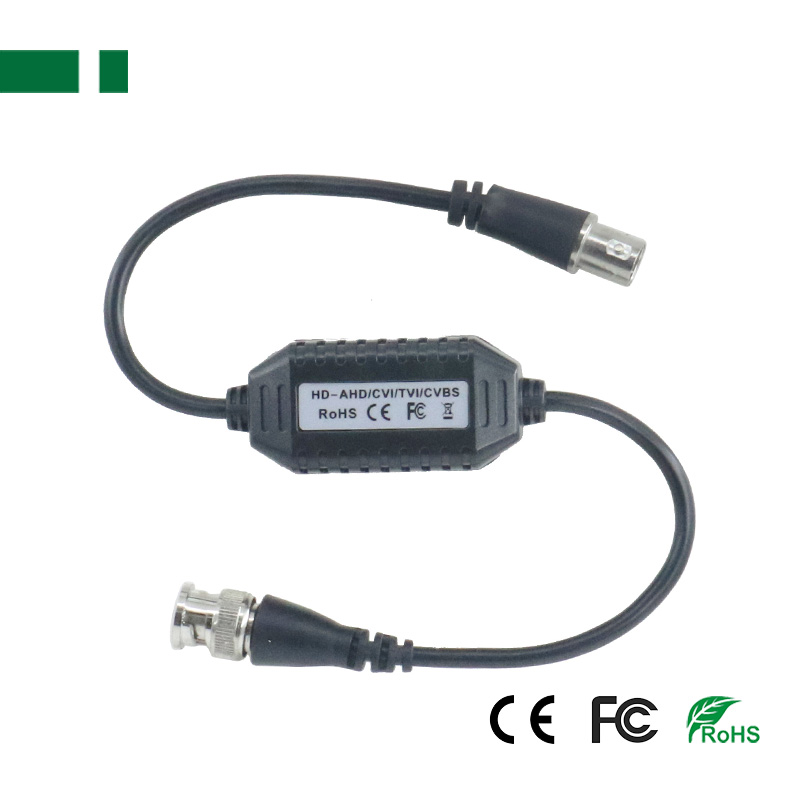

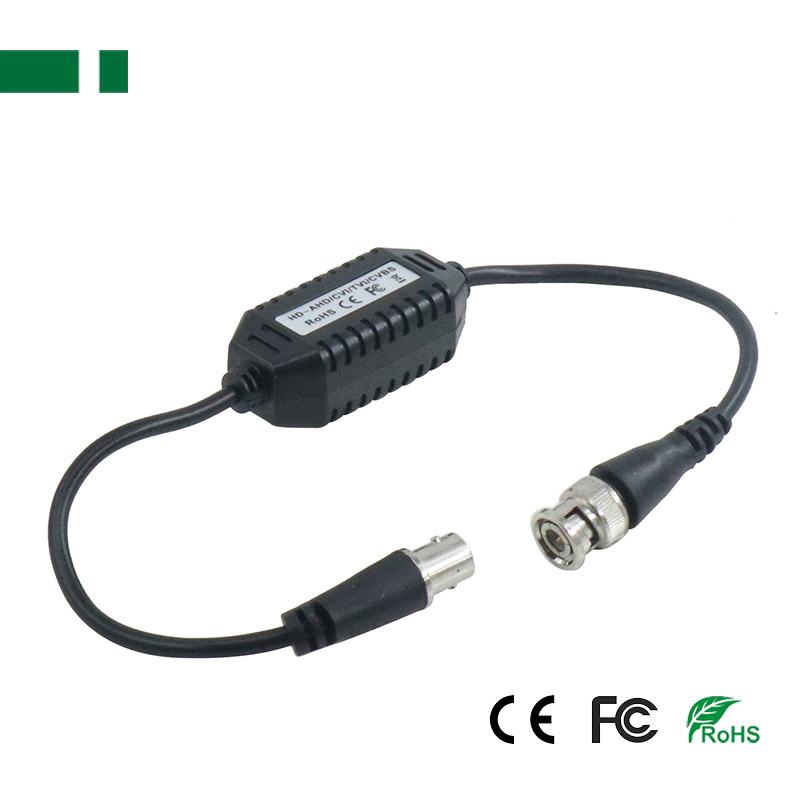

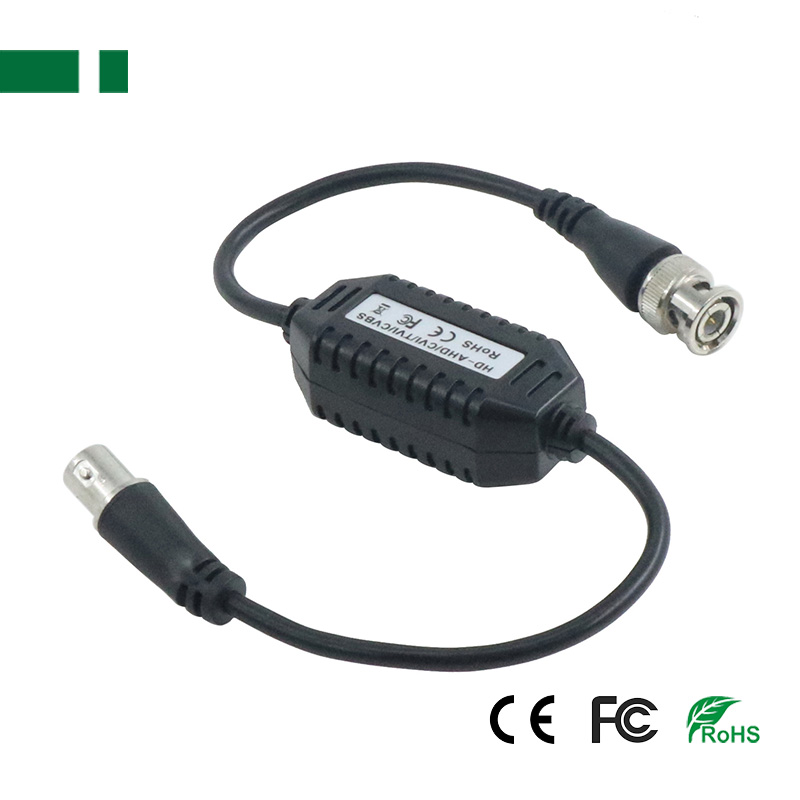

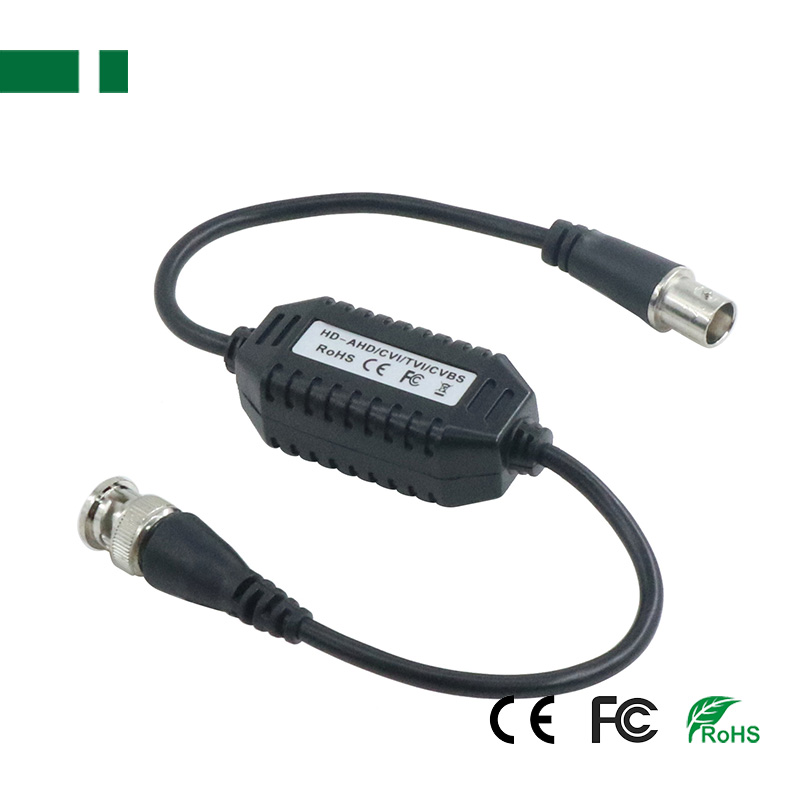

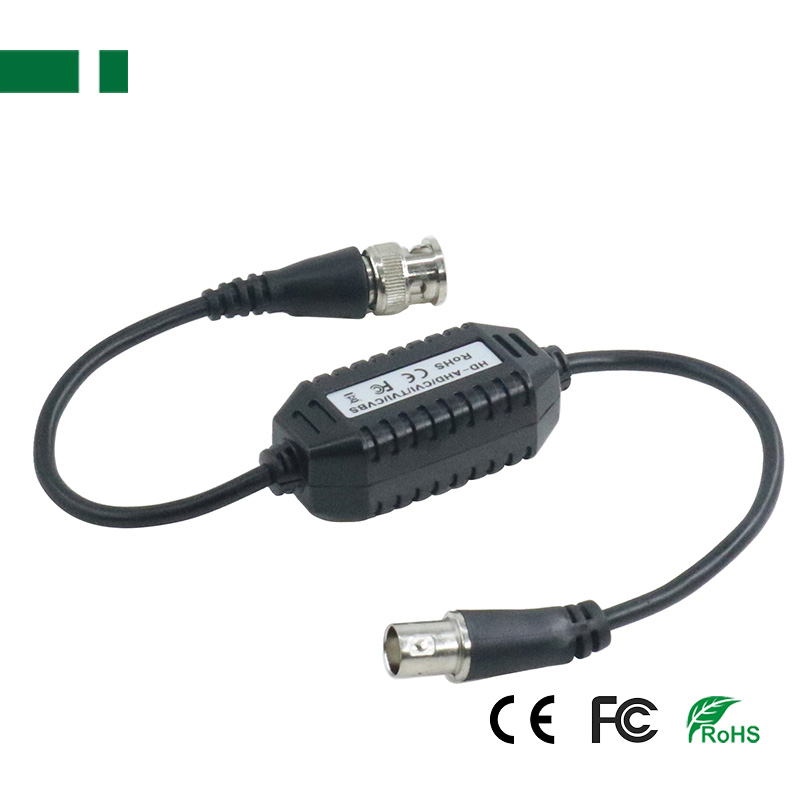

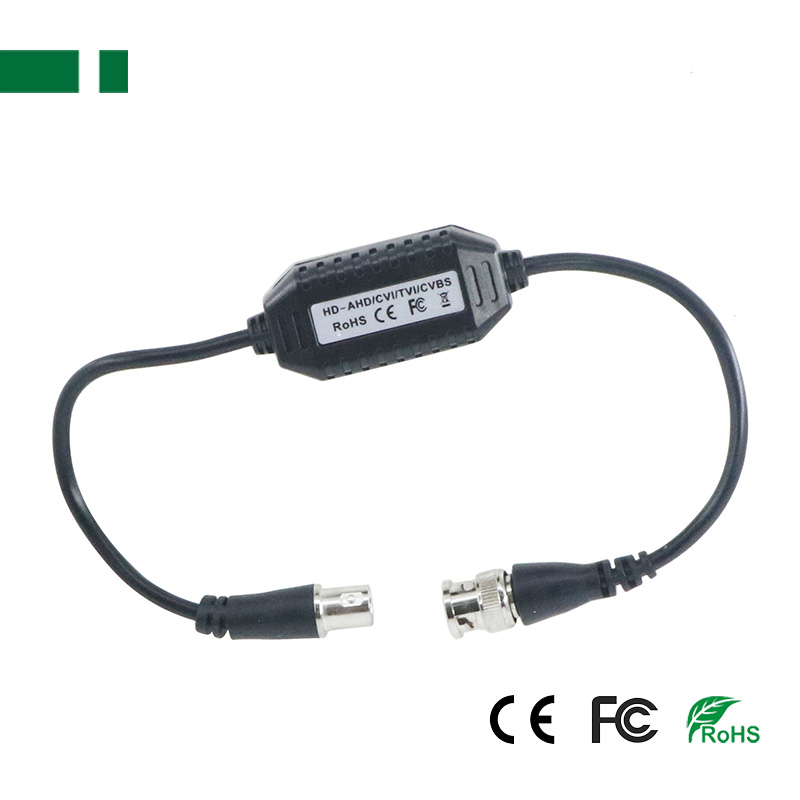

C-GB001-HD Video Ground Loop Isolator support 1080P AHD/CVI/TVI,
- HD Video Ground Loop Isolator
- support 1080P AHD/CVI/TVI
- Lightning protection design
- Real-time transmission over UTP Cat5e/6
- Product description: The product is a ground loop isolator for HD video. It can effectively eliminate interference like distortion, tearing, cross striation, reticulate pattern and snowflake caused by earth potential diff
Features:
Video Ground Loop Isolator
BNC male to BNC female with mini cable on both sides
Passive no power required
Prevents video-signal distortion caused by video ground loops
Eliminates picture tearing cross talk and rolling
Specifications
Video Ground Loop Isolator
BNC male to BNC female with mini cable on both sides
Passive no power required
Prevents video-signal distortion caused by video ground loops
Eliminates picture tearing cross talk and rolling
Specifications
| Model | C-GB001-HD |
| Insertion Loss | ≤0.5dB |
| Frequency Response | 0-3dB at 10Mhz |
| Input Resistance | 75ohm |
| Output Resistance | 75ohm |
| Isolation Voltage | DC 600V |
| Insulation Resistance | 100m ohm |
| Transient voltage suppressors | 12Vrms |
| Working temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 0 to 95% |
