Universal Brackets & Junction Box

CB-221B CB-222C CB-222E L type monitoring hoisting bracket

CB-221B CB-222C CB-222E L type monitoring hoisting bracket

Material: aluminum alloy
Color: White
Tube: outer tube 45mm, inner tube 38mm, Outlet: 15*20mm
Length: 30-60cm, 60-120cm, 100-200cm optional.
Product description: Product name: Monitoring enclosure bracket L-type wall-mounted aluminum alloy universal duckbill outdoor camera telescopic extension rod
INQUIRY EMAIL

Product name: Monitoring enclosure Bracket L-type wall-mounted aluminum alloy universal duckbill outdoor camera telescopic extension rod

Feature:
Product name: L type monitoring hoisting bracket
Material: aluminum alloy
Color: White

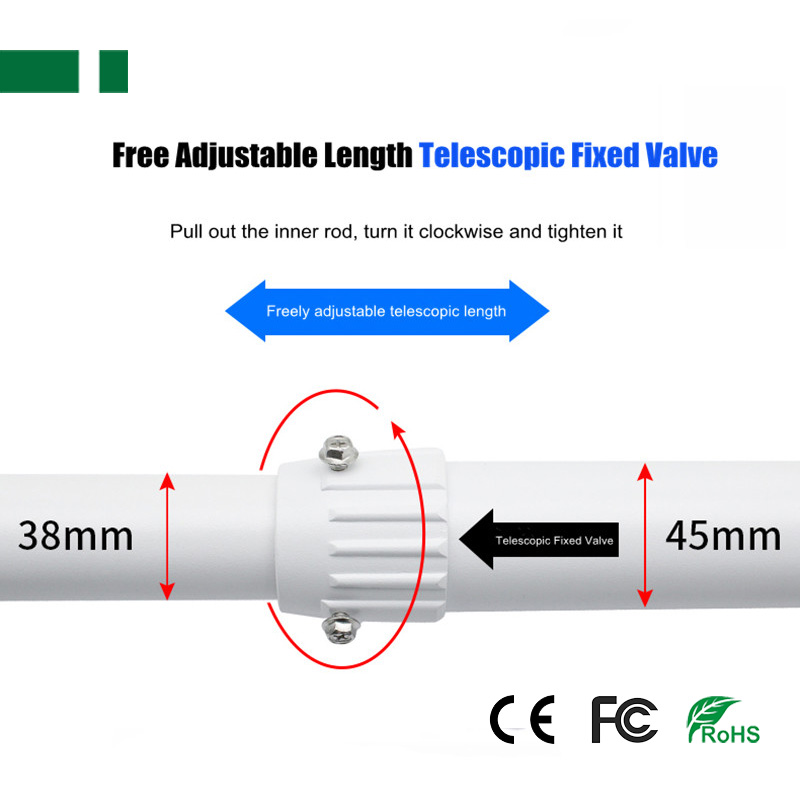

Tube: outer tube 45mm, inner tube 38mm, Outlet: 15*20mm
Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)

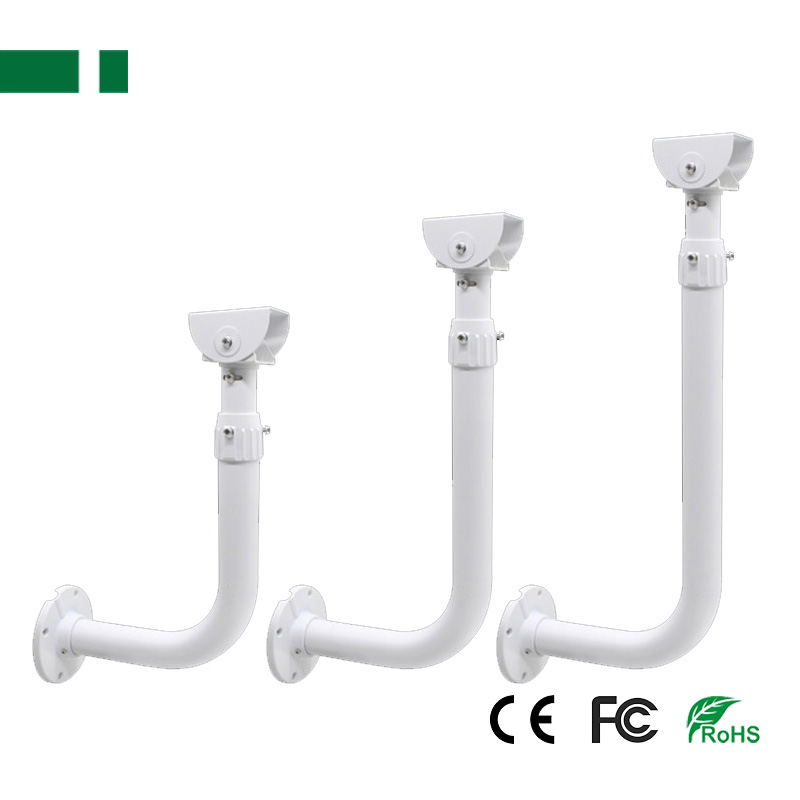

Length: 30-60cm, 60-120cm, 100-200cm optional.
It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.

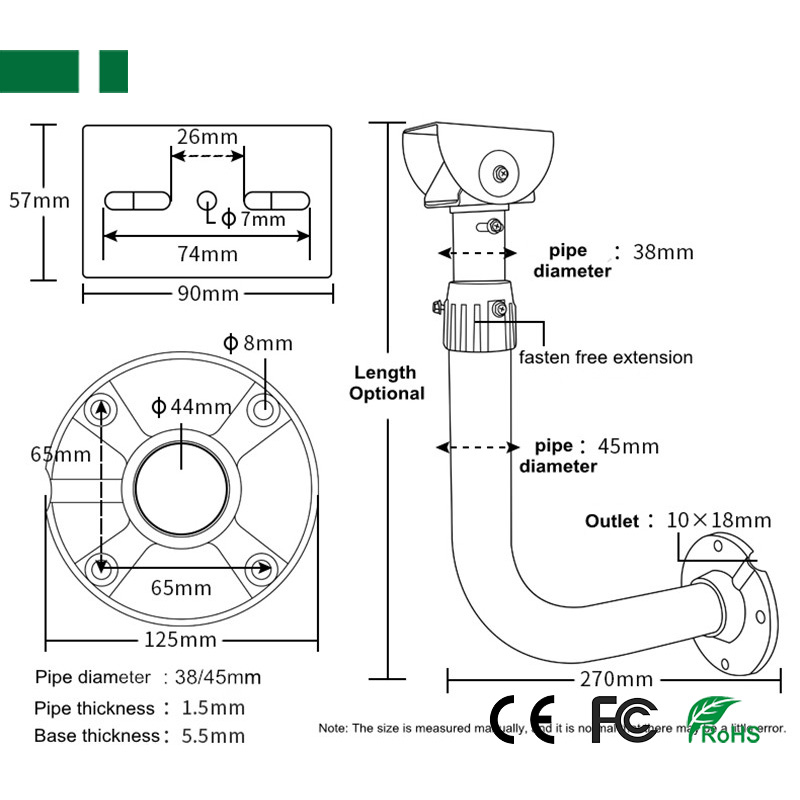

Specification:

Model	CB-221B	CB-221C	CB-221E
Name	"L" Shape Monitoring Hoisting Aluminum Bracket
Material	Aluminum alloy
Installation	Wall-mounted, Ceiling-mounted , Hoisting, Vertical installation
Applicable	Outdoor & Indoor
Rotation	Support up and down rotation 180°, left and right rotation 360°, the direction can be adjusted.

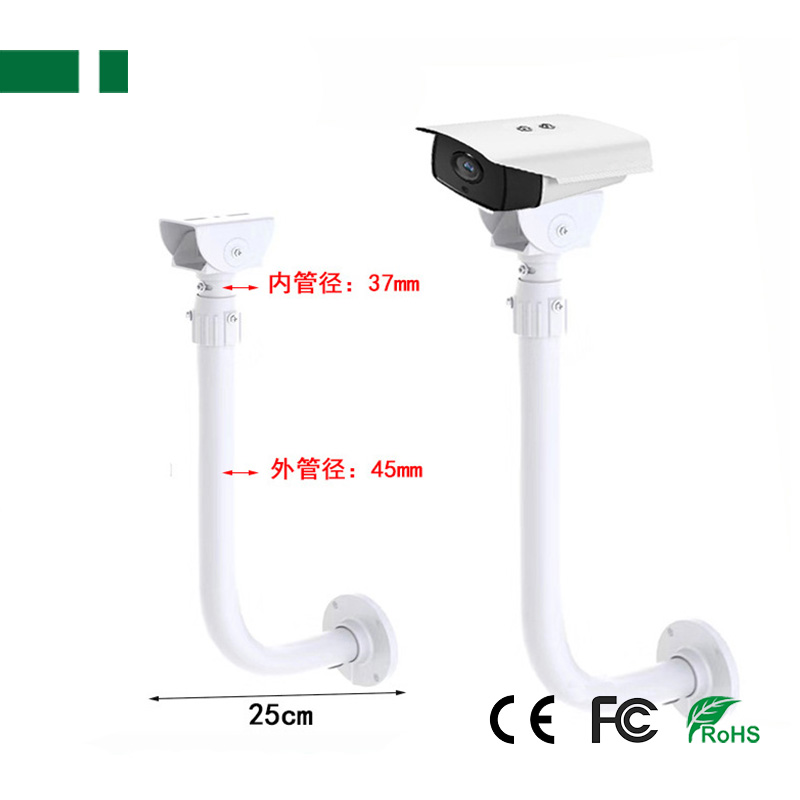

Length	25cm
Height	30-60cm	60-120cm	100-200cm
Fixed Base	125(D)mm

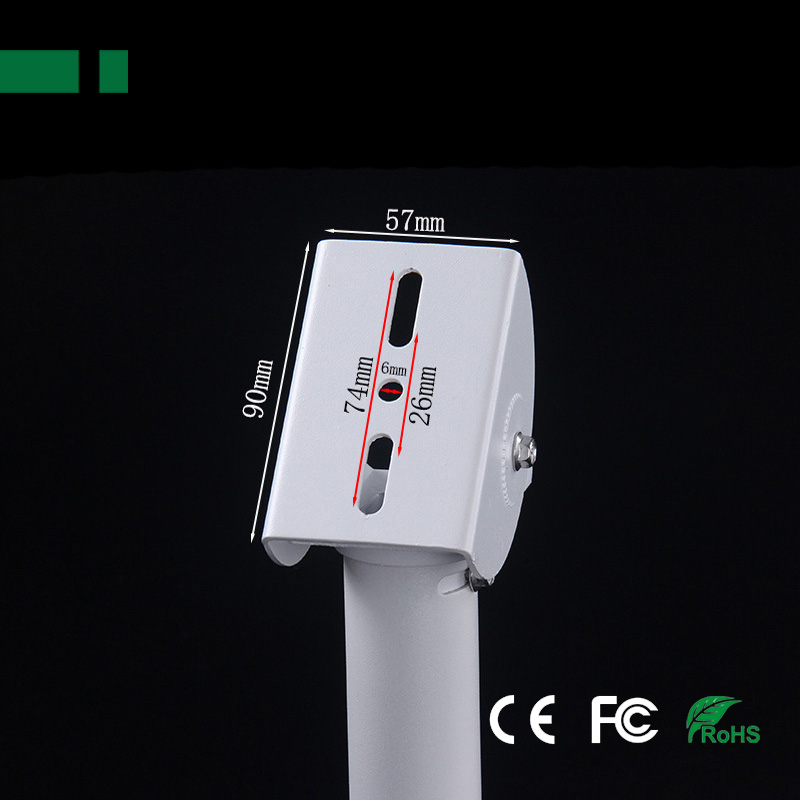

Clamp size	90(L)*58(W)mm
Inner Tube diameter	38mm
Outer Tube diameter	45mm

Package Including:
1pcs camera bracket
Warm prompt: Camera is not included in the package.

Disclaimer: The size is manually measured by hand, and there may be an error of 1-3MM.
