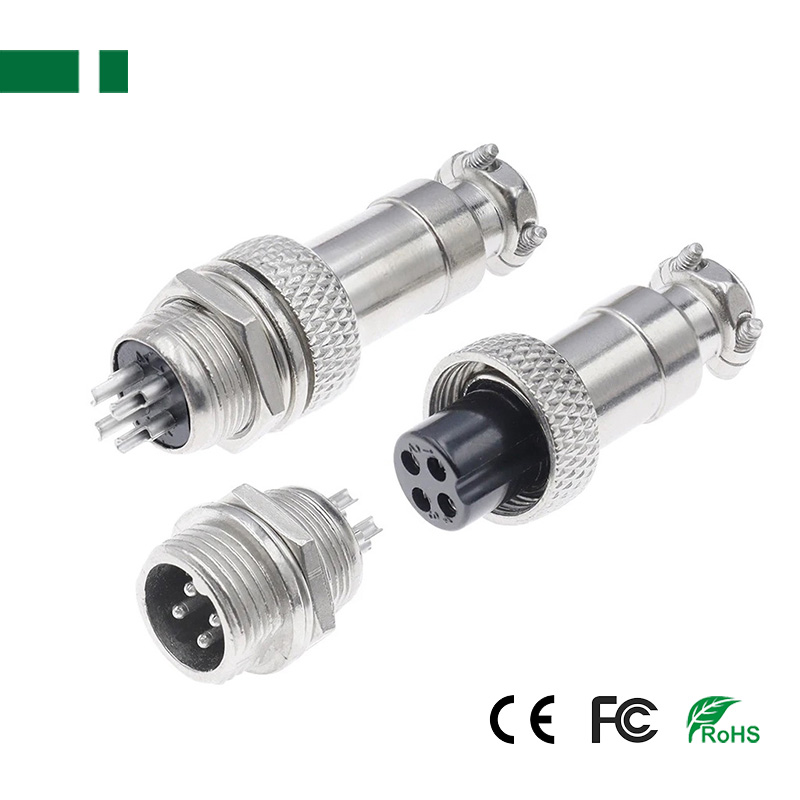

CM12-4F 12mm 4-Pin Aviation Core Air Plug Socket Female Connector

12mm 4-Pin Aviation Core Air Plug Socket

Description:
Aviation plug and socket connector, as the name implies, refers to the connector components used in the aviation field. It is a general-purpose connector in the industry say. There are countless connectors for power transmission and signal transmission in the aviation field, and the product series is also extremely wide. Therefore, an aviation plug head socket does not refer to a plug socket of a model. CM12 aviation connector is one of them.

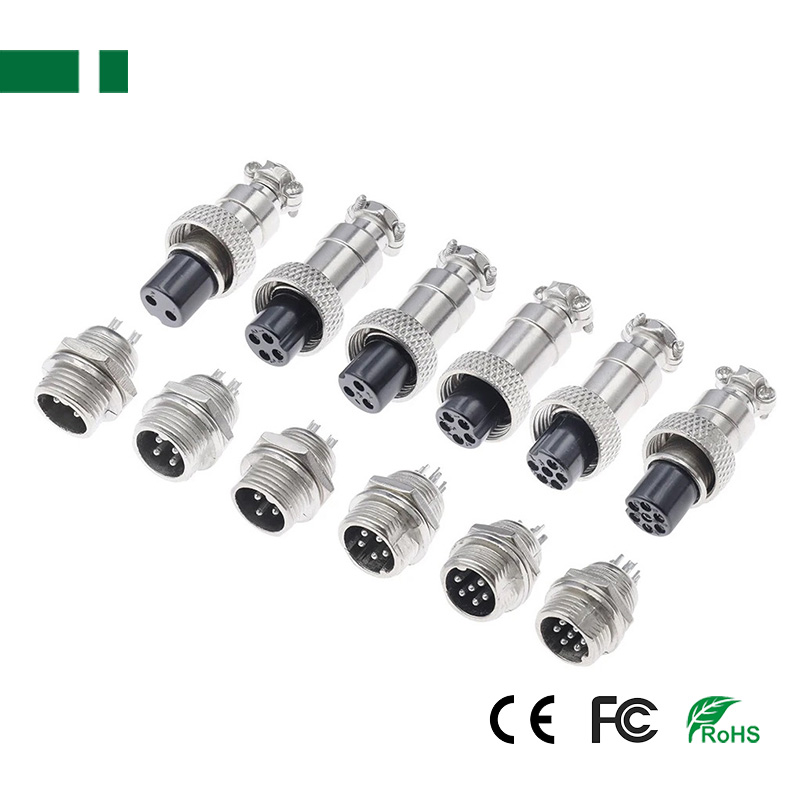

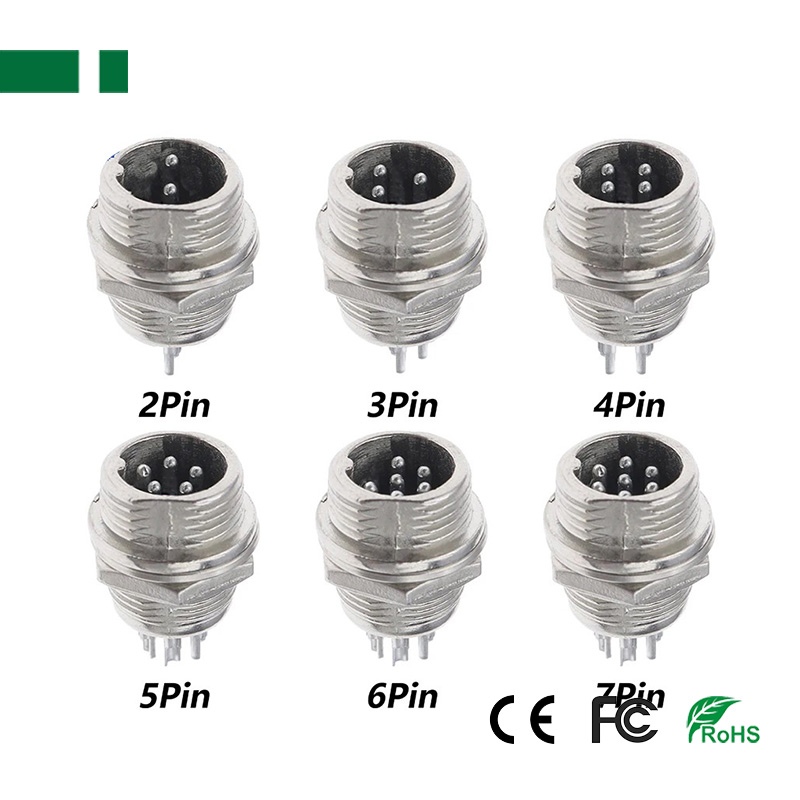

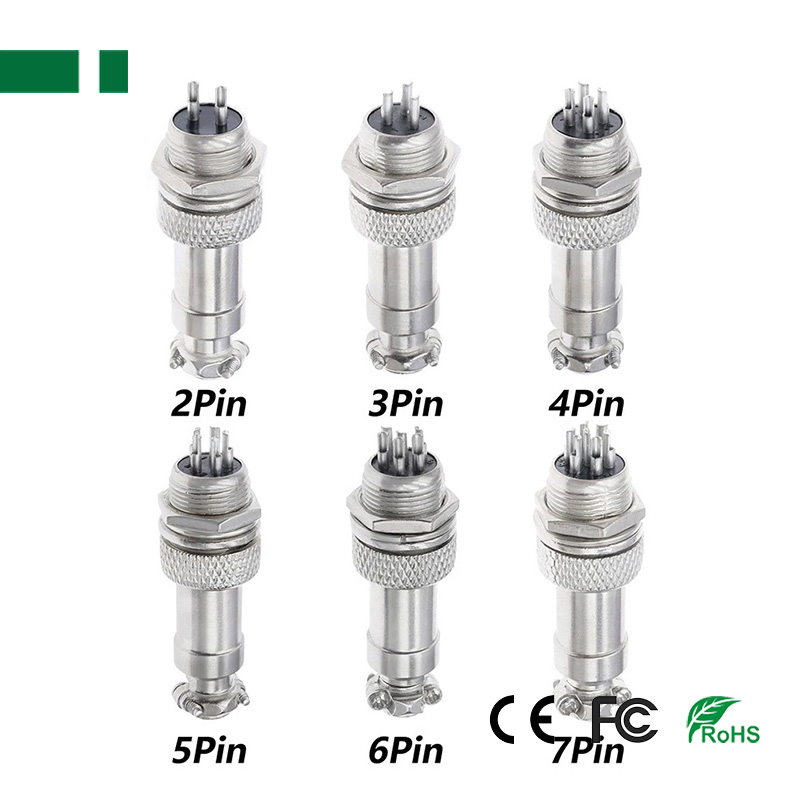

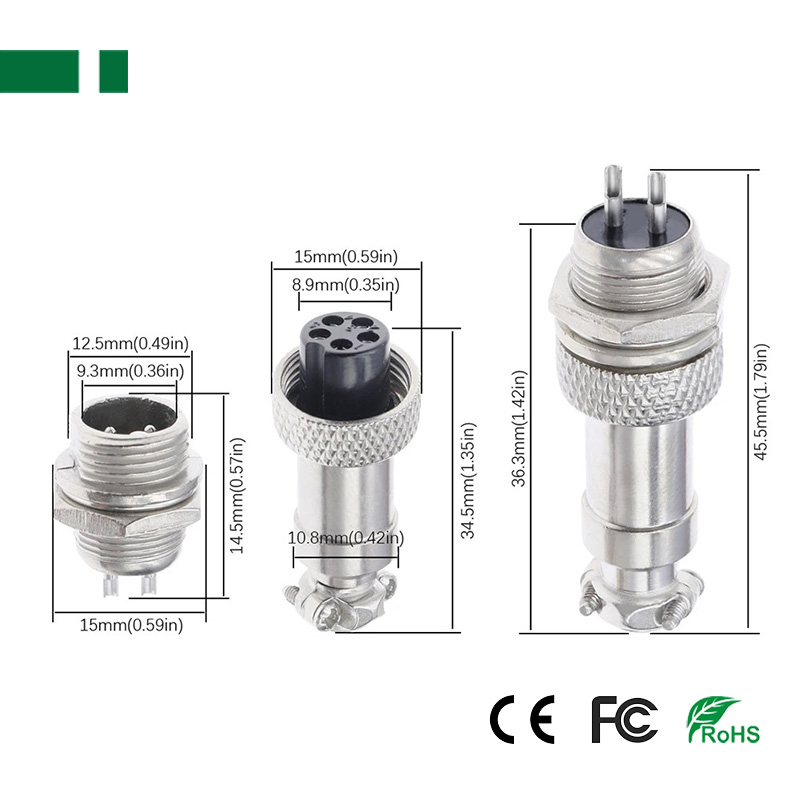

The CM12 aviation connector standard is available in many pin counts. Including 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin.

Male type Model	CM12-2M	CM12-3M	CM12-4M	CM12-5M	CM12-6M	CM12-7M

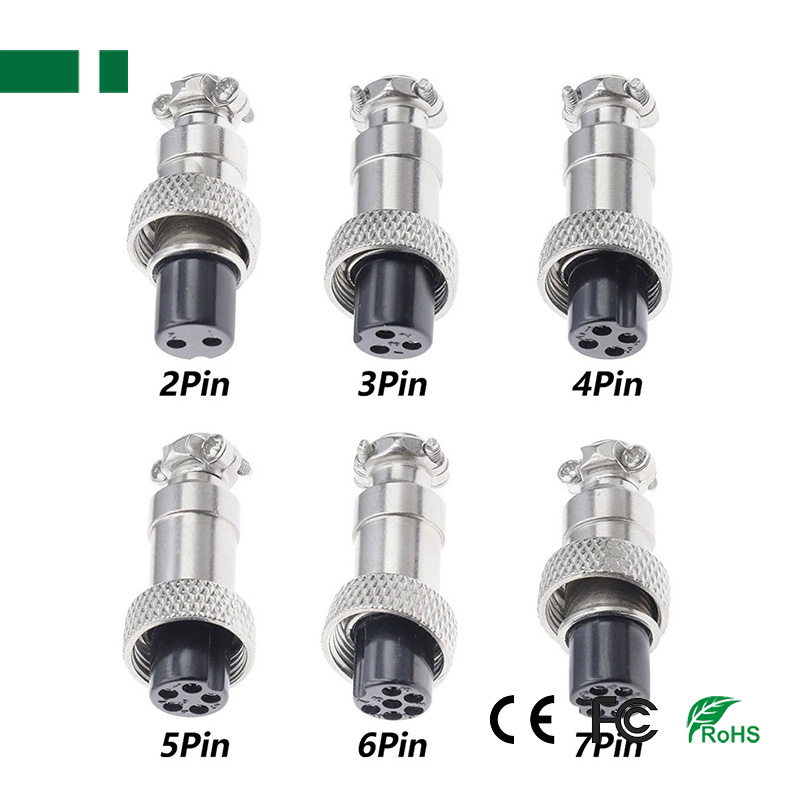

Female type Model	CM12-2F	CM12-3F	CM12-4F	CM12-5F	CM12-6F	CM12-7F
Pins	2P	3P	4P	5P	6P	7P
Rated Current	5A
Rated Voltage	125V
Housing Material	Zinc Alloy
Pin Material	Solid Copper Pins
Rubber core Material	Bakelite
Wiring	Weld
Service Life	1000 times
Technology	Electroplate: Silver Plating
Withstand Voltage	1500V/Min			1000V/Min
Insulation Resistance	1500MΩ			1000MΩ
Contact Resistance	10MΩ
Contact Hole Size	1.15mm
Cut-out size	12mm

Feature:
1. CM12 Aviation Connector
Mounting Hole Diameter: 12mm
Pins Number: 2/3/4/5/6/7 pins
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤5.0mm

2. CM16 Aviation Connector
Mounting Hole Diameter: 16mm
Pins Number: 2/3/4/5/6/7/8/9/10 cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤7.5mm

3. CM20 Air Connector
Mounting Hole Diameter: 20mm
Pins Number: 2/3/4/5/6/7/8/9/10/12/14/15 Pin cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤9.5mm
