Optic Fiber Protection Box

CNP-01 Optical Fiber protective sleeve

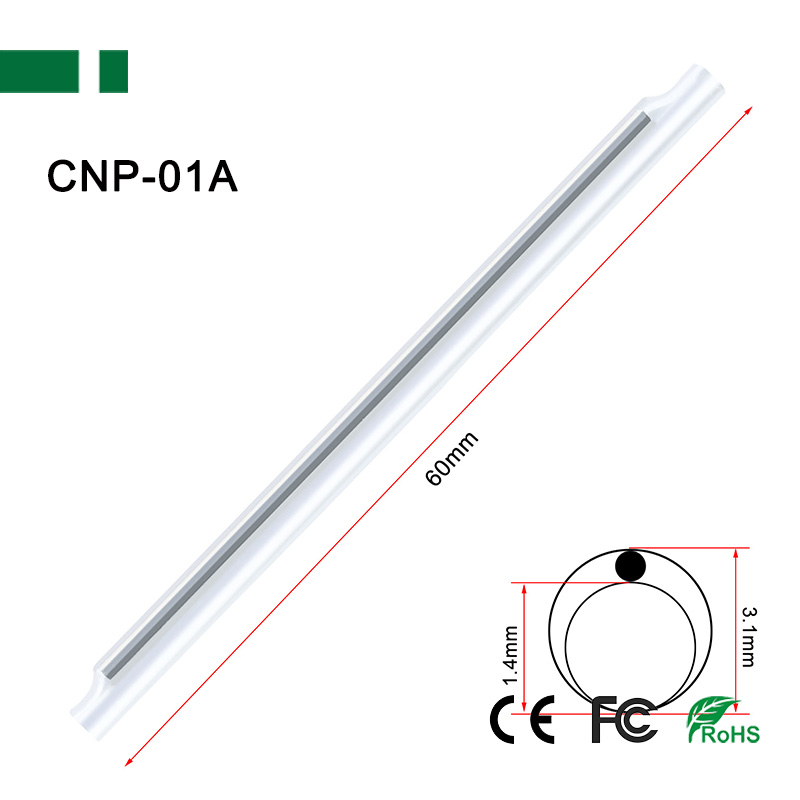

CNP-01A Bare fiber single needle protective sleeve
CNP-01B Leather thread single needle protective sleeve

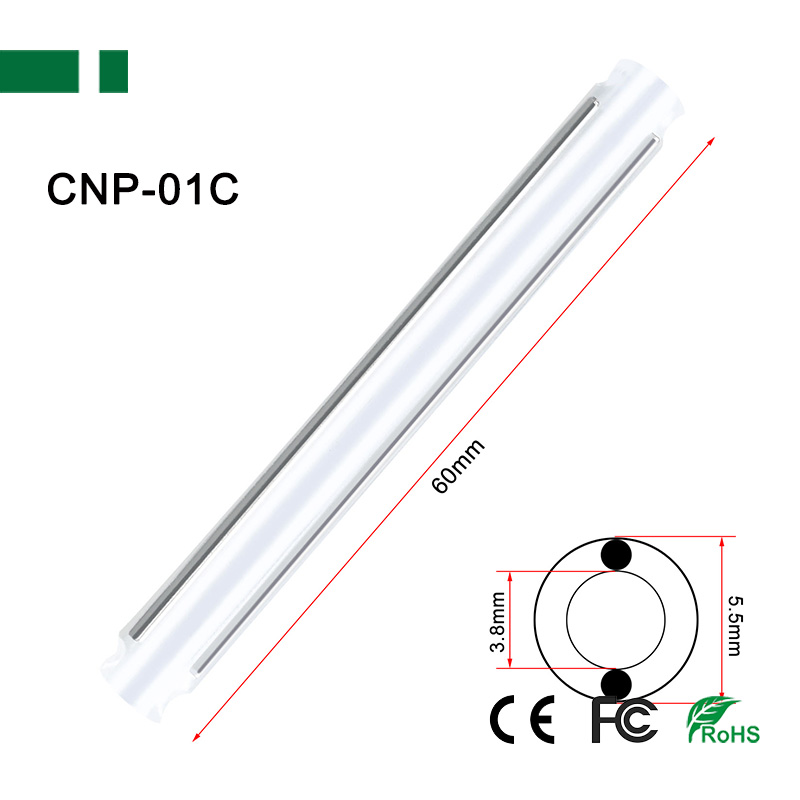

CNP-01C Leather thread double needle protective sleeve
Length: 60mm

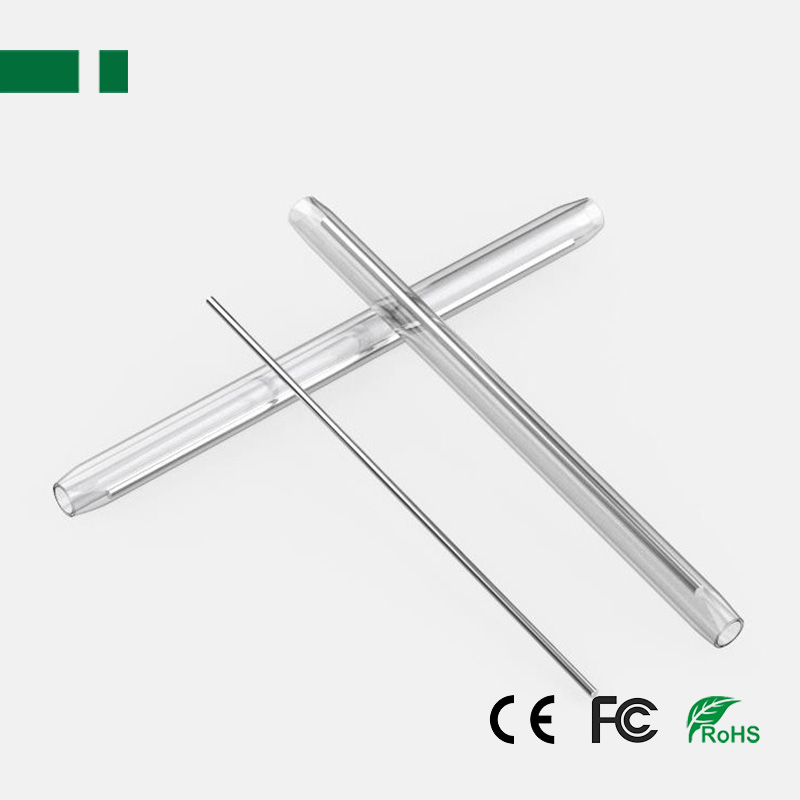

Product description: 60mm Optical fiber heat shrinkable tube FTTH fiber splicing Protection Sleeves thin tube
INQUIRY EMAIL

60mm Optical fiber heat shrinkable tube FTTH fiber splicing Protection Sleeves thin tube

Feature:
1. Two-way ironing head sealing.
Both ends of the heat shrinkable tube are designed with lock mouth. Effectively prevent the internal steel needle from falling off.

2. High quality 304 stainless steel needle.
High strength light weight, high temperature resistance and long service life.

3. Environmentally friendly PE material.
Cross linked polyolefin material, in the extension, oil and cold resistance cracking and other aspects of performance greatly improved corrosion resistance, it can be used under harsh conditions, and it is safer to use.

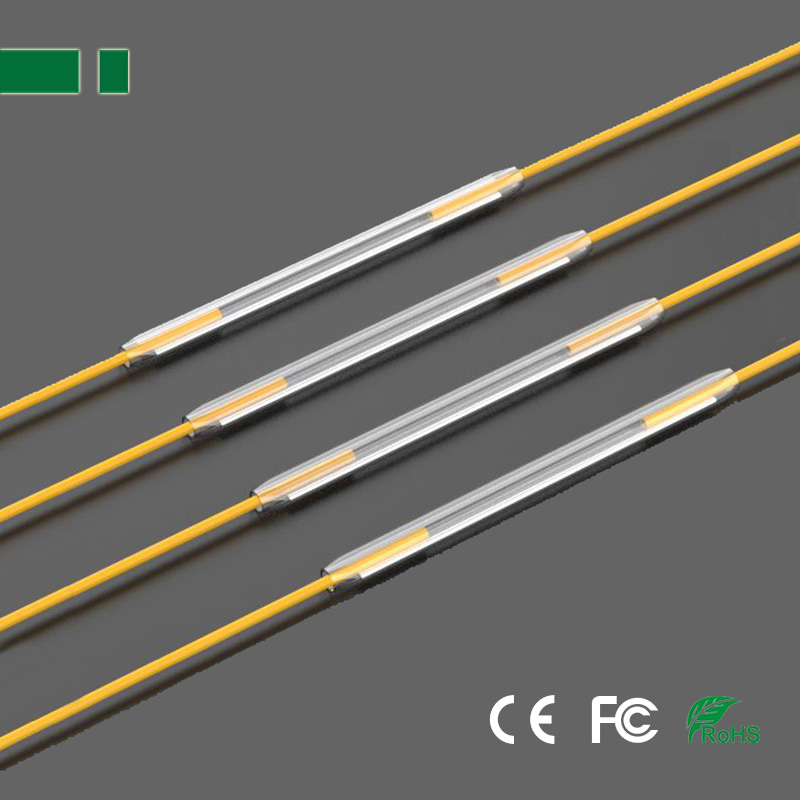

4. Effectively protect the welding part without affecting the loss.
Only need to connect the optical fiber to the tube, which is fast and convenient to use.

Specification:

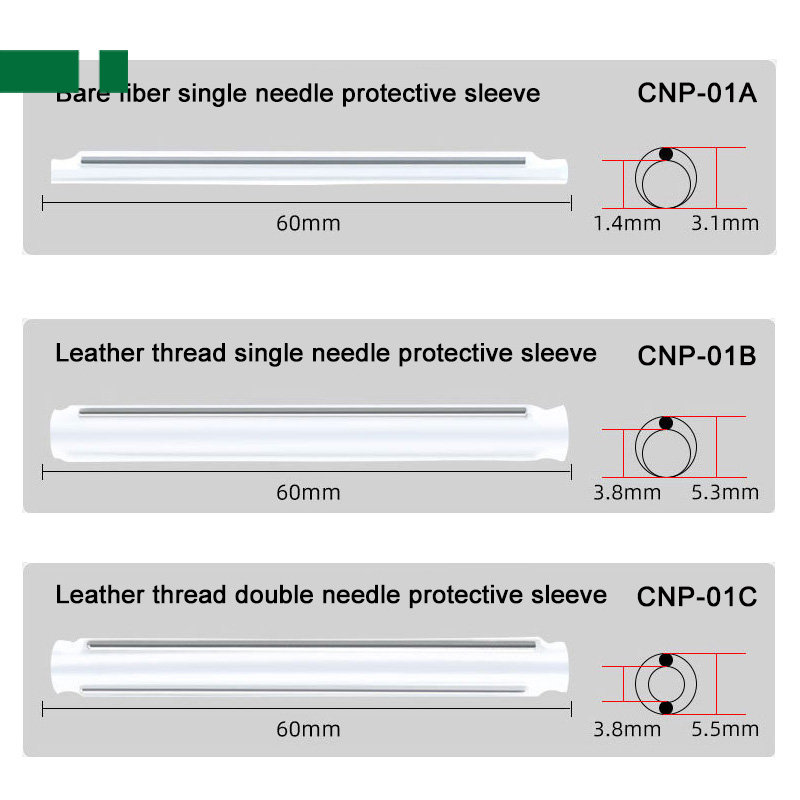

Product name	Optical Fiber Heat Shrinkable Tube protective sleeve
Model	CNP-01A	CNP-01B	CNP-01C
Product name	Bare fiber single needle	Leather thread single needle	Leather thread double needle
Inner wall	Inner diameter: 1.4mm	Inner diameter: 3.8mm	Inner diameter: 3.8mm
Outer wall	Inner diameter: 3.1mm	Inner diameter: 5.3mm	Inner diameter: 5.5mm
Length	Length: 60mm
Steel needle material	304 stainless steel
Steel needle size	Diameter: 1.2mm, Length: 55mm
Skin quality	Environmental protection PE material
Scope of application	Optical Fiber welding position
Color	Transparent
Operating temperature	—55~105℃
Packaging	100pcs/packet
