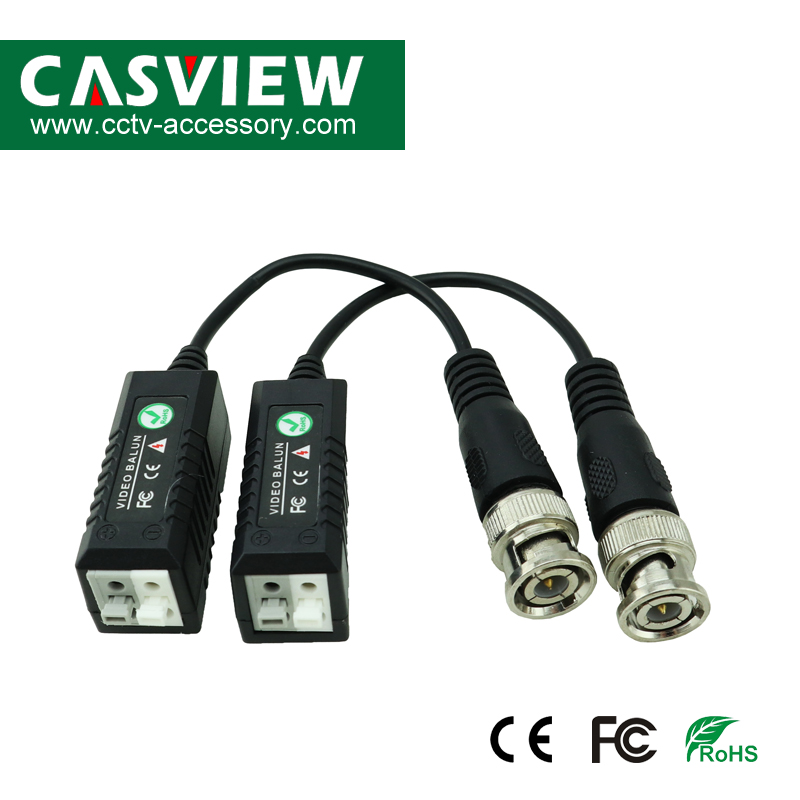

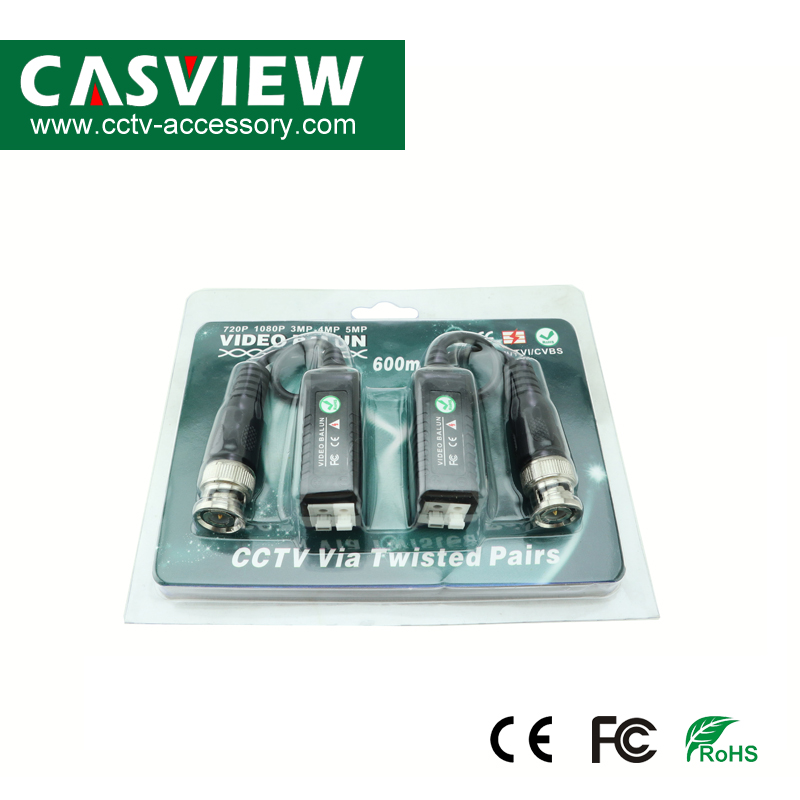

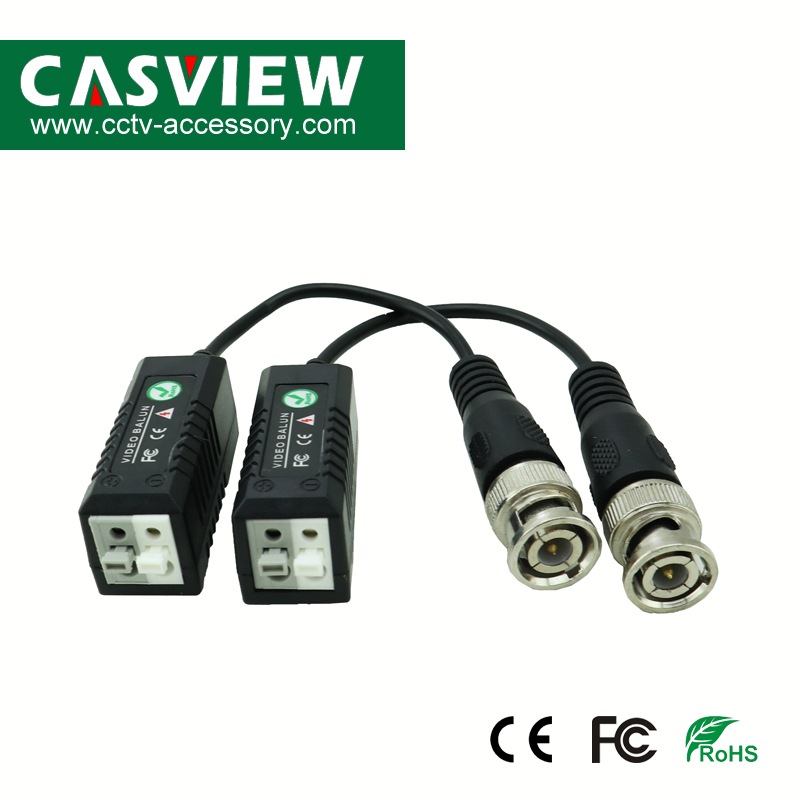

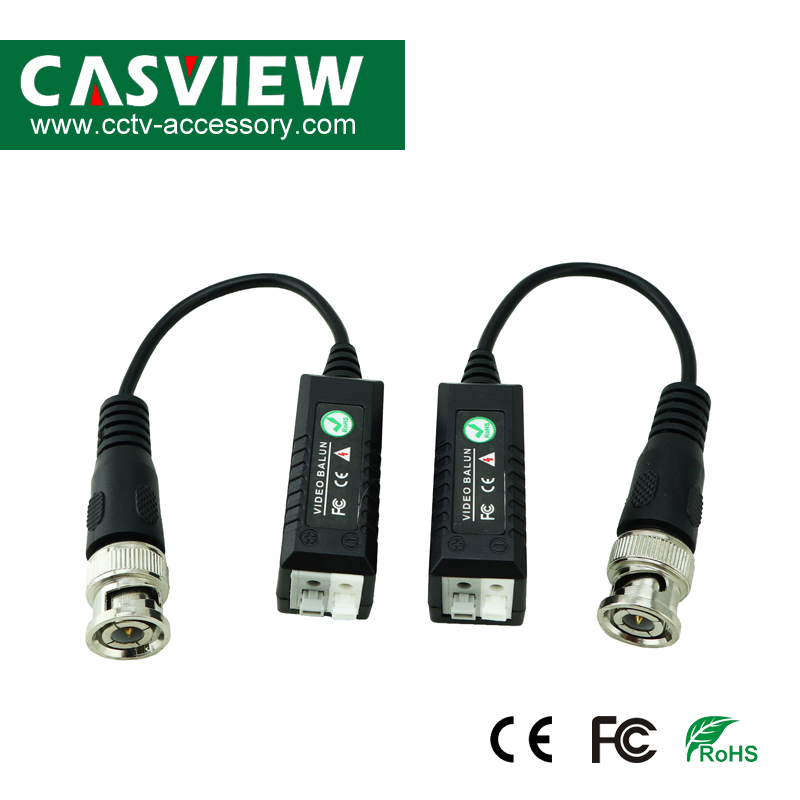

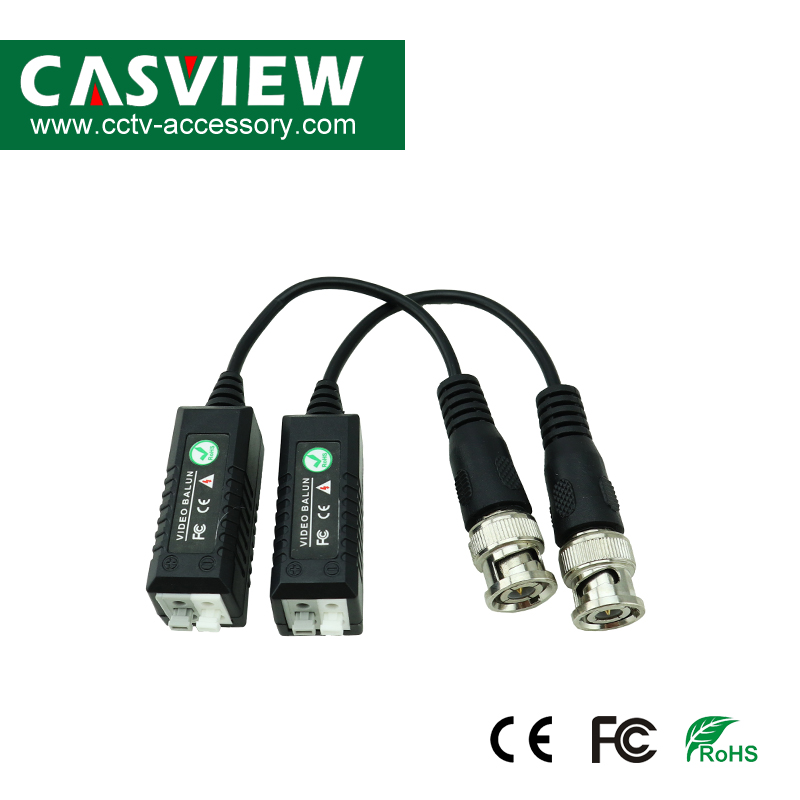

HD Passive Video Balun

CPB-H102C-1

HD-CVI/TVI/AHD & CVBS
1080P/3MP/4MP/5MP/8MP
Lightning protection design
Real-time transmission over UTP Cat5e/6
Product description: CASVIEW technology concentrating on CCTV power supply, video balun, CCTV Cable, BNC Connectors and other cctv accessories etc. email: info@casview.com
INQUIRY EMAIL

Features:
1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable for Neat installtion
6. ABS engineering plastic Housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design

10. Real-time transmission over UTP Cat5e/6

Specification:

Model	CPB-H102C-1
Balun Type	Passive
Video transmitting distance	Up to 450m for 720P CVI Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras Up to 350m for 720P/ 960P AHD Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
Video Formats	NTSC, PAL, SECAM
Crosstalk & noise immunity	60dB
Surge protection	4KV, ESD:8KV
Frequency Response	DC to 60Mhz
Wire Type	Unshielded Cat-5 or above twisted pair wire
Impedance	BNC:75 ohms; Terminal: 100 ohms
Working temperature	-10°C to +70°C
Storage Temperature	-10°C to +70°C
Humidity	0 to 95%
Material	ABS engineering plastic
