HD Passive Video Balun

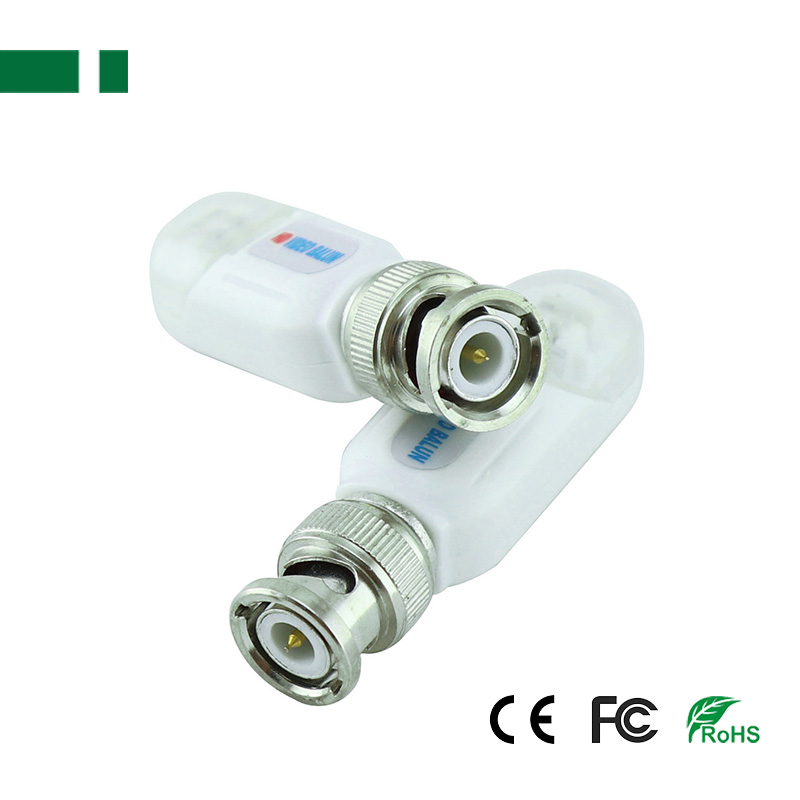

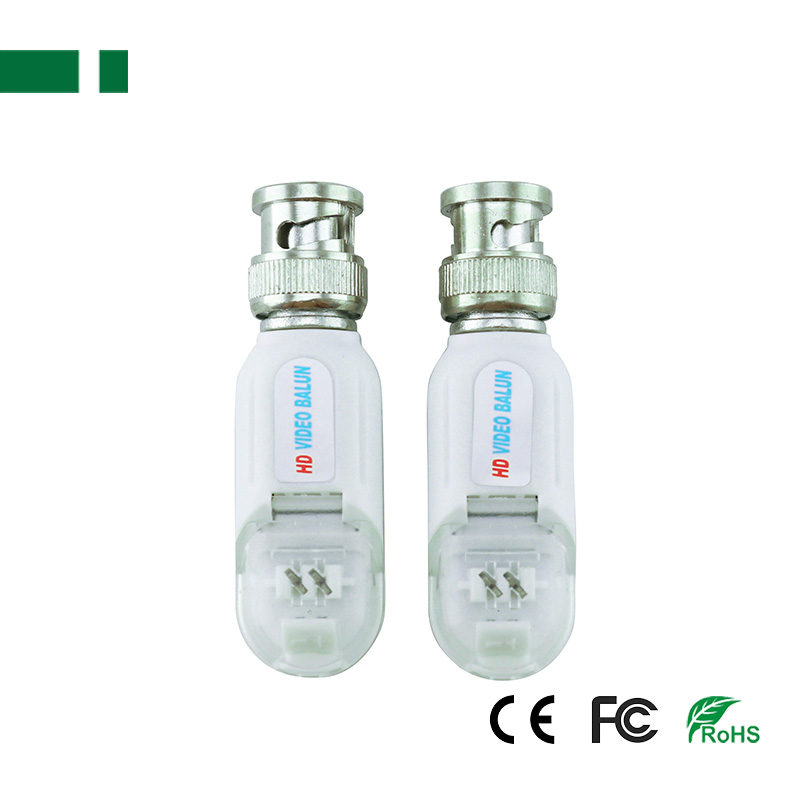

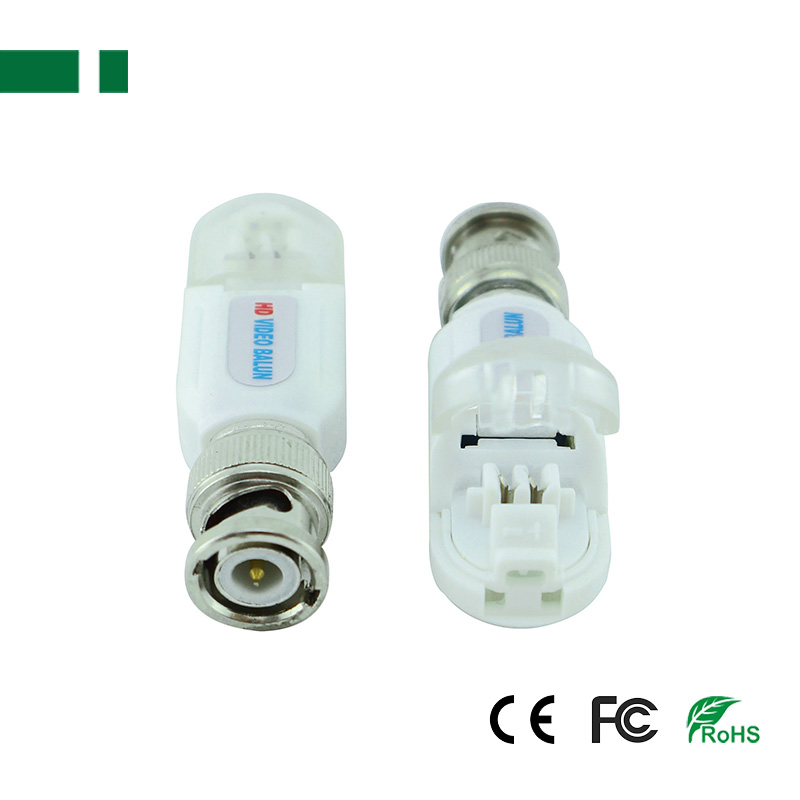

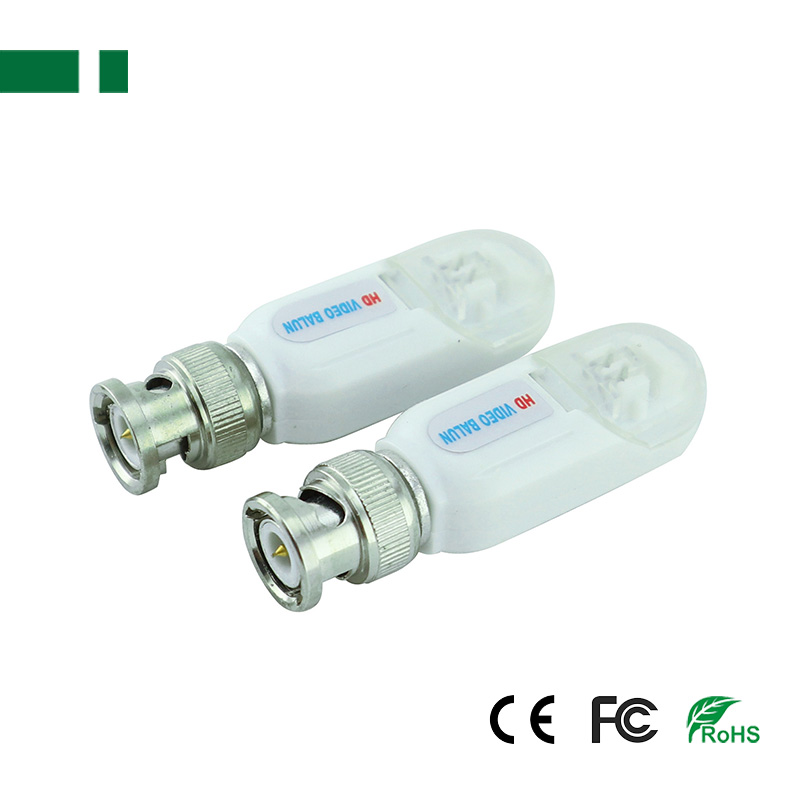

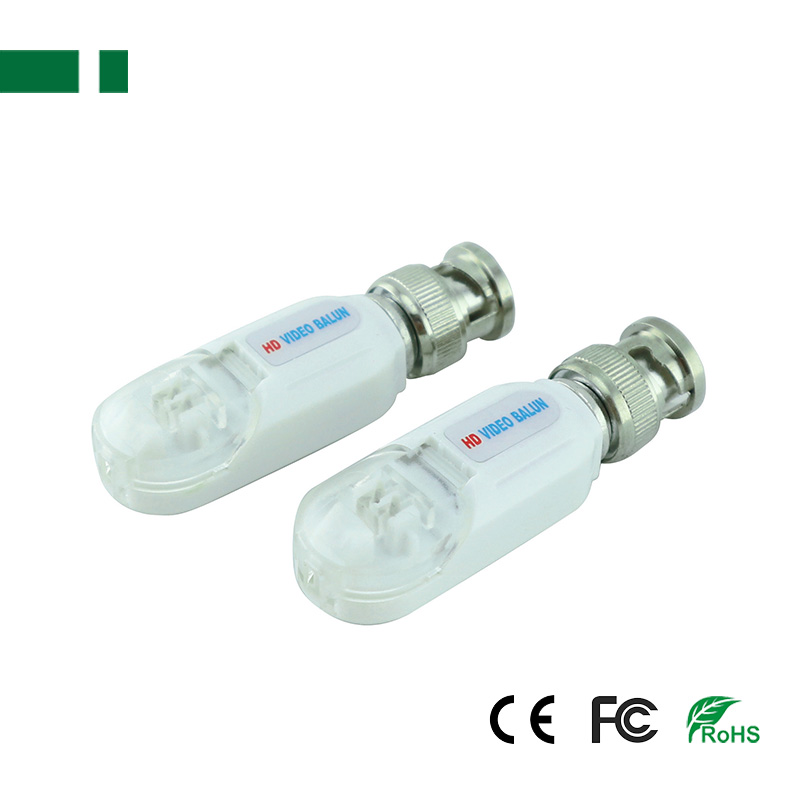

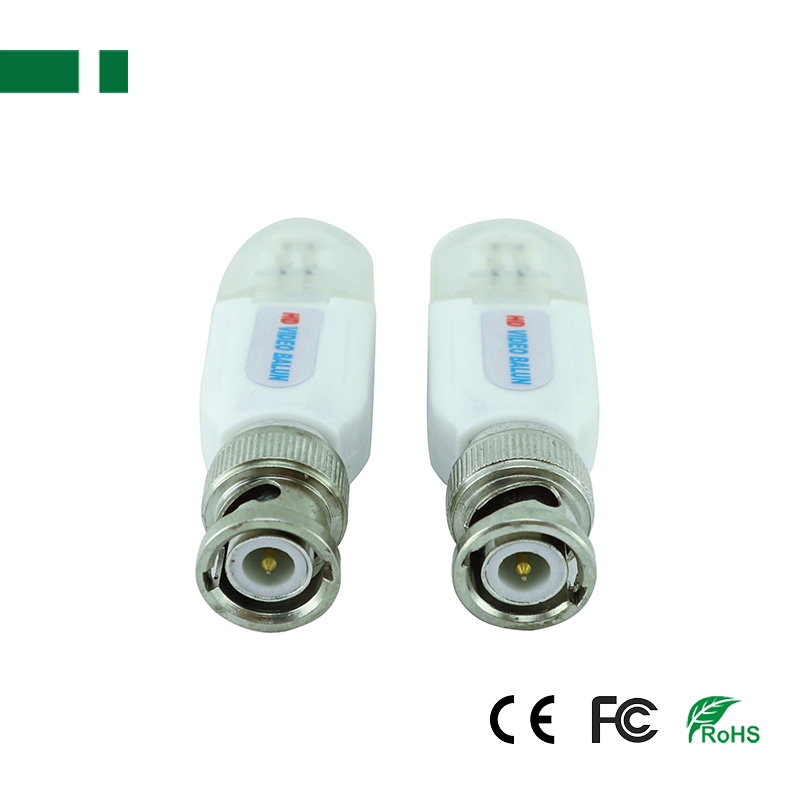

CPB-H106 8MP HD Video Balun with Surge Protection
- 8MP HD Video Balun with Surge Protection
- Resolution: 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP
- Built-in solid state TVS for surge protection
- ABS Engineering Plastic Housing
- Product description: The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective UTP cable.
Description:
The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective Unshielded Twisted Paired (UTP) cable.
Feature:
1. Real-time transmission Video Signals over UTP CAT5e/6;
2. Compatible with HD-TVI, HD-CVI, HD-AHD and CVBS Analog Camera;
3. Low crosstalk and noise suppressions;
4. Male BNC Connector;
5. Built-in solid state TVS(Transient Voltage Suppressor) for surge protection;
6. Wave Filter Design, Anti-Static Design;
7. 60dB crosstalk and noise immunity;
8. Exceptional interference rejection;
9. ABS Engineering Plastic Housing.
Specification:
The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective Unshielded Twisted Paired (UTP) cable.
Feature:
1. Real-time transmission Video Signals over UTP CAT5e/6;
2. Compatible with HD-TVI, HD-CVI, HD-AHD and CVBS Analog Camera;
3. Low crosstalk and noise suppressions;
4. Male BNC Connector;
5. Built-in solid state TVS(Transient Voltage Suppressor) for surge protection;
6. Wave Filter Design, Anti-Static Design;
7. 60dB crosstalk and noise immunity;
8. Exceptional interference rejection;
9. ABS Engineering Plastic Housing.
Specification:
| Model | CPB-H106 | CPB-H106C |
| Connector | BNC Male Connector | |
| Balun Type | Passive type | |
| Video Formats | HD-TVI, HD-CVI, AHD and CVBS | |
| Resolution | 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP | |
| Ant-interference | >60dB | |
| ESD | 1a contact discharge electricity level 3, 1b air discharge electricity level 3 | |
| Surge Protection | 2KV (different-code), 2KV (common-code), Per: IEC61000-4-5 | |
| Wire Type | UTP CAT5e/ 6 (R<100Ω/100M) Twisted Pair Wire | |
| Impedance | BNC Male:75 ohms; UTP Cable: 100 ohms | |
| MTBF | >10000h | |
| Temperature | Working: -10°C to +70°C, Storage: -20°C to +90°C | |
| Humidity | 0 to 95% (non-condensing) | |
| Material | ABS Engineering Plastic | |
| HD-TVI, HD-CVI, HD-AHD and CVBS Video transmitting Distance | |||
| Camera Type | HD-TVI | HD-CVI | HD-AHD |
| 720P Camera | Max. 350M (1148ft) | Max. 400M (1312ft) | Max. 450M (1476ft) |
| 960P Camera | / | / | Max. 350M (1148ft) |
| 1080P Camera | Max. 250M (820ft) | Max. 250M (820ft) | Max. 250M (820ft) |
| 3MP Camera | Max. 250M (820ft) | Max. 250M (820ft) | Max. 250M (820ft) |
| 4MP Camera | Max. 210M (689ft) | Max. 210M (689ft) | Max. 200M (656ft) |
| 5MP Camera | Max. 210M (689ft) | Max. 210M (689ft) | Max. 190M (623ft) |
| 8MP Camera | Max. 200M (656ft) | Max. 200M (656ft) | Max. 190M (623ft) |
| CVBS Camera | Max. 400M (1312ft) | ||
