POE Repeater & Extender

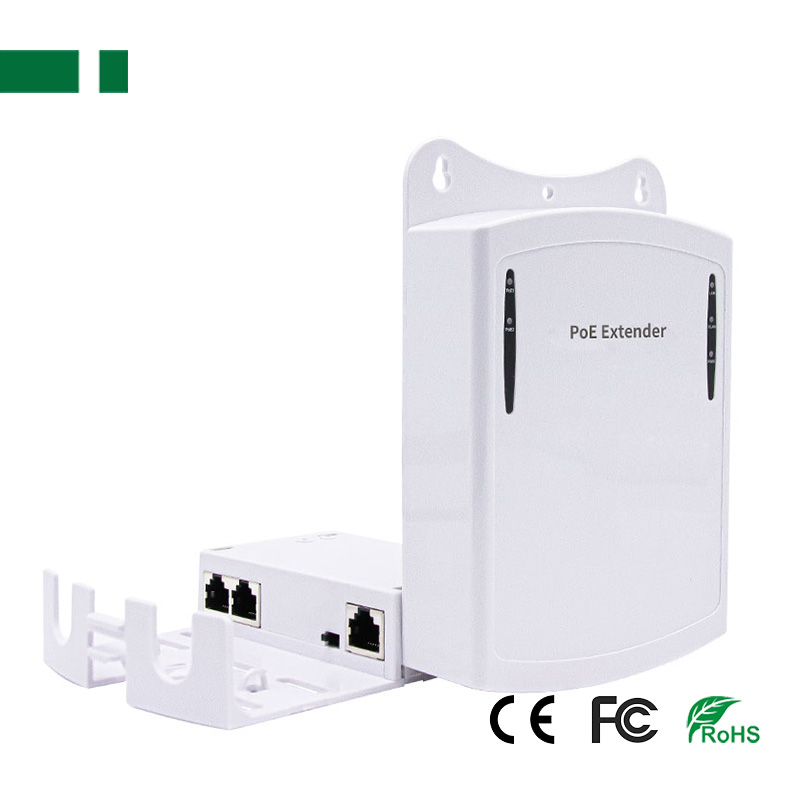

CPE-1032R 1*2 100Mbps Rainy-proof POE Splitter Extender

CPE-1032R 1*2 100Mbps Rainy-proof POE Splitter Extender

● POE Output: DC44-57V, Max.: 30W;
● Network Protocol: IEEE802.3at/af;
● Power Pin: 1/2(+)，3/6(-), Max.: 25.5W;
● Data Pin: 1/2(+), 3/6(-);
Product description: The POE Extender can automatically detect and identify the compliant power receiving devices and supply power to them through network cables.
INQUIRY EMAIL

Description：

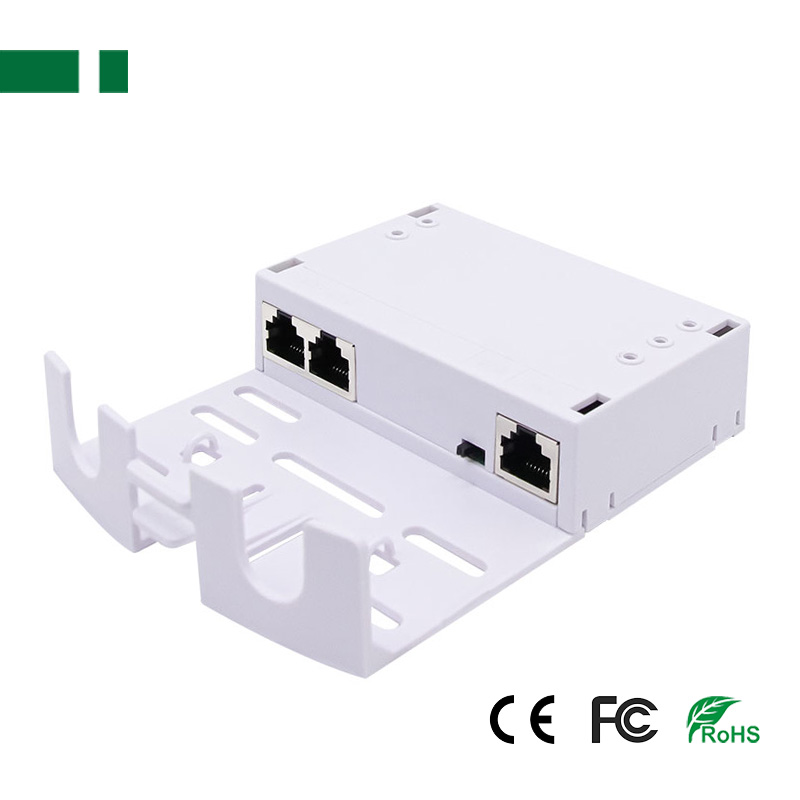

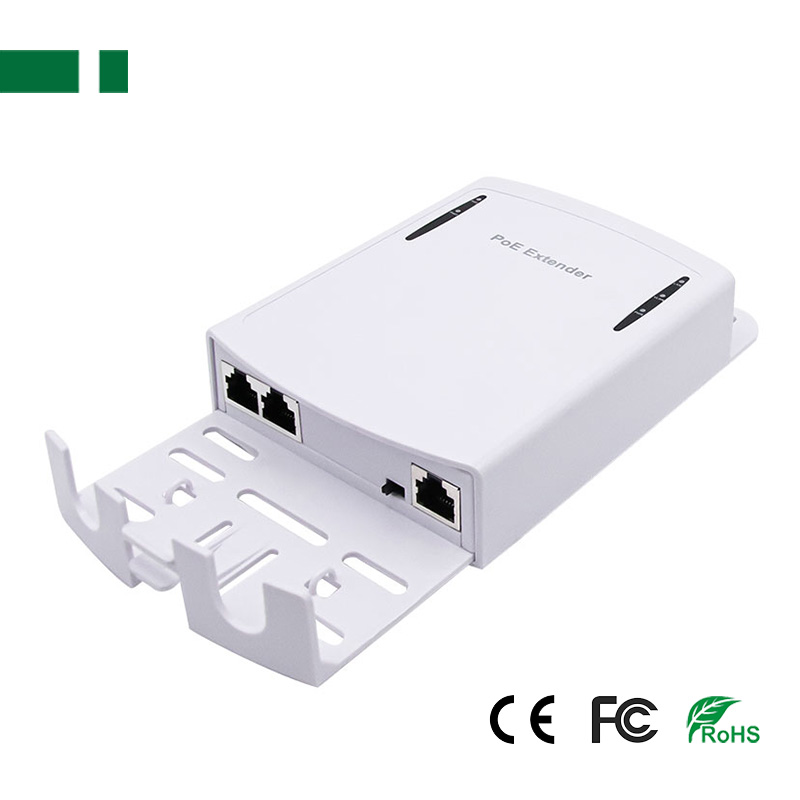

The POE Extension Device provides 2-Port 100Mbps power supply ports and 1-Port 100Mbps Up-link power supply port. These ports support IEEE 802.3af/at standard POE Power Supply, and the POE power of a single port is up to 30Watt.
The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100M Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.

Feature:
● 10/100Mbps 1*2 POE Splitter/Extender;
● POE Input: DC44-57V;
● POE Output: DC44-57V, Max.: 30W;
● Network Protocol: IEEE802.3at/af;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2(+), 3/6(-);
● Power: 1/2(+)，3/6(-), Max.: 25.5W;
● Transmission distance: 100M;

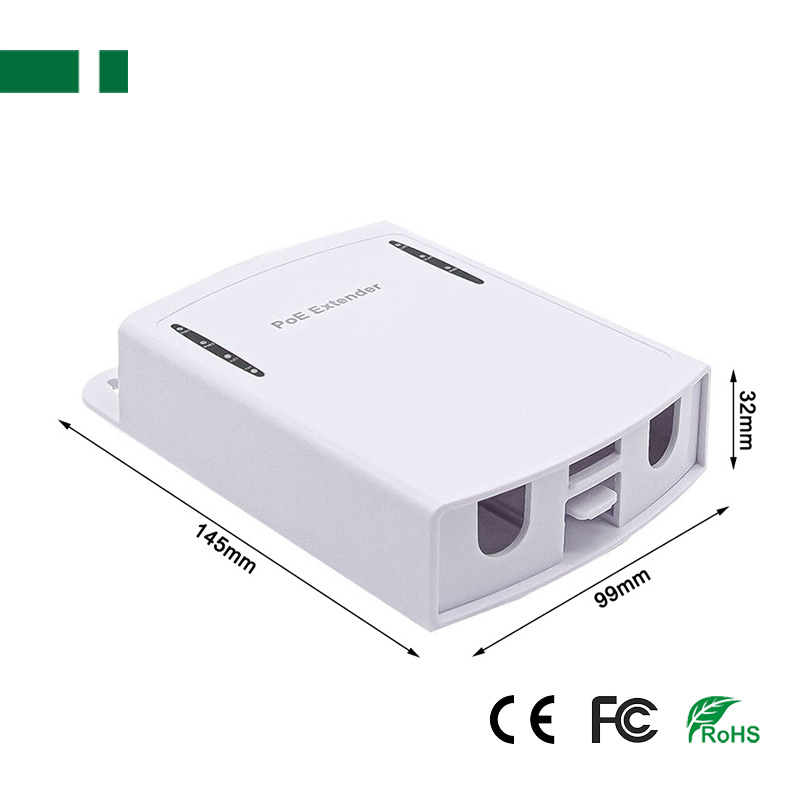

● ABS Plastic Shell, Size: 145*99*32mm(L*W*H);

Specification:

*100Mbps & 1.0Gbps "12" "13" "14" POE Splitter/ Extender**
Model	CPE-1032R	CPE-1033R	CPE-1034R	CPE-1032RG	CPE-1033RG	CPE-1034RG
Interface	3*100Mbps RJ45	4*100Mbps RJ45	5*100Mbps RJ45	3*1.0Gbps RJ45	4*1.0Gbps RJ45	5*1.0Gbps RJ45
PoE Support	IEEE802.3at/af
Network protocol	IEEE802.3 10BASE-T； IEEE802.3i 10Base-T；IEEE802.3u 100Base-TX；IEEE802.3x
Forwarding mode	Storage and forwarding (full line speed)
Data Pin	1/2(+), 3/6(-)			1/2(+), 3/6(-), 4/5(+), 7/8(-)
Power Pin	1/2(+), 3/6(-) , Max.: 25.5W
Extend Distance	0~100M
Max. POE Power	30Watt
Power Consumption	＜2Watt
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing
