POE Splitter & Injector

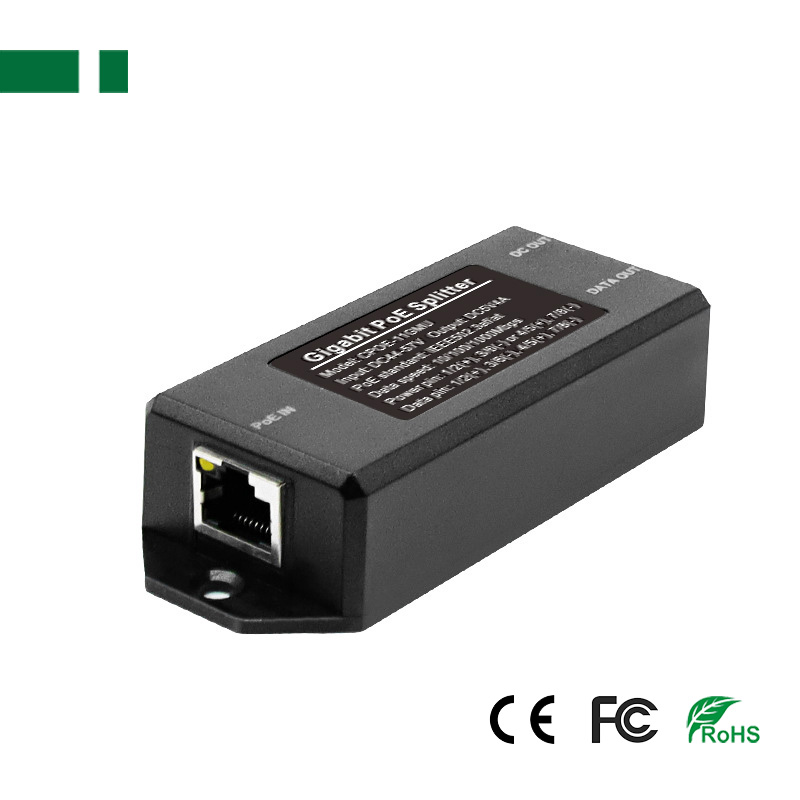

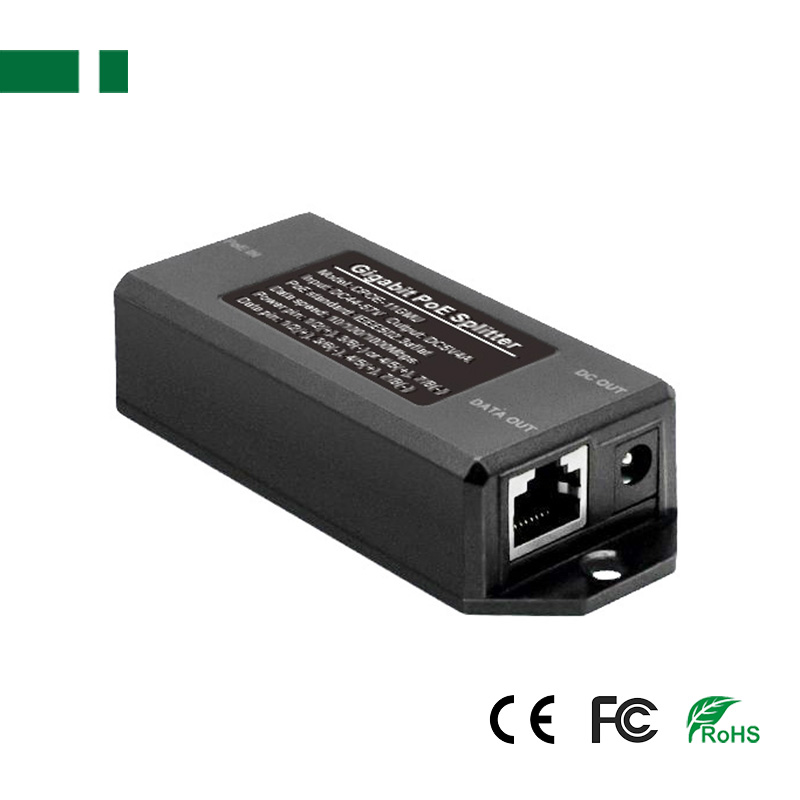

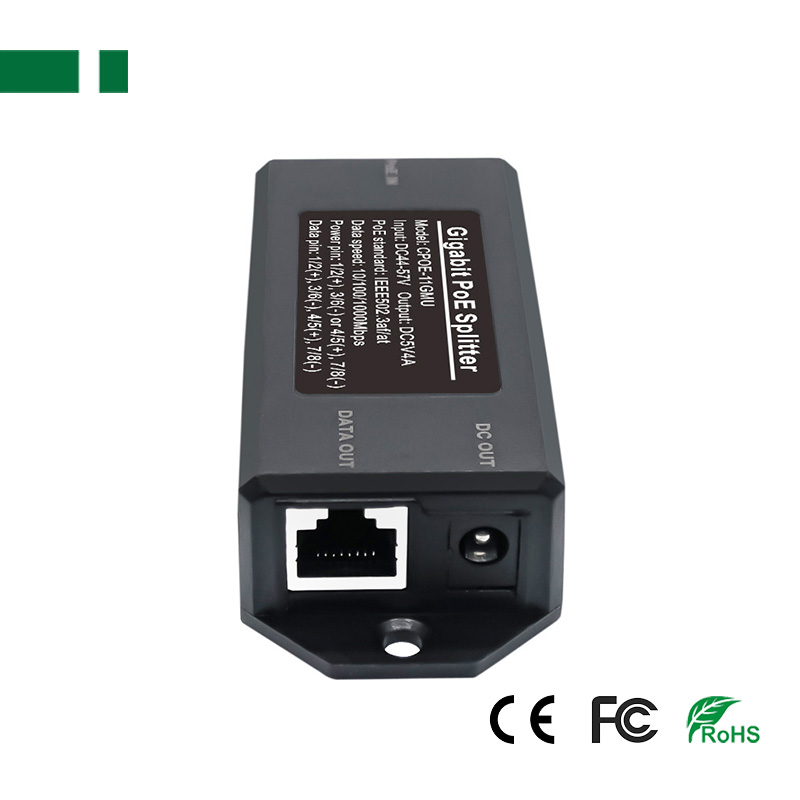

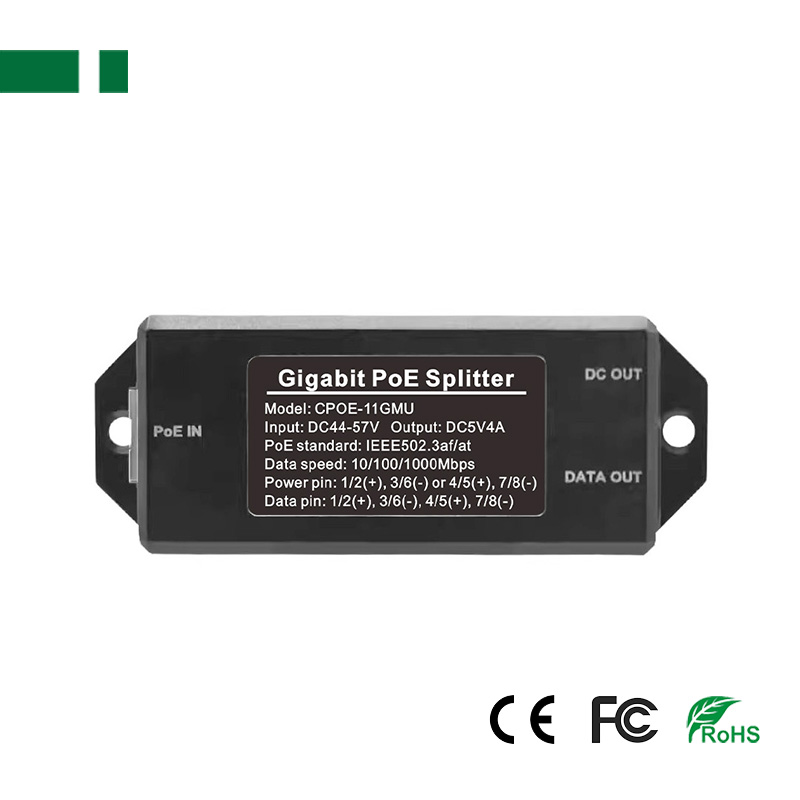

CPOE-11GMU DC48V-to-DC5V 1.0Gbps POE Splitter

CPOE-11GMU DC48V-to-DC5V 1.0Gbps POE Splitter

● Power Input: DC44V-57V;
● Power Output: DC5V, 4A
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Data Pin: 1/2: (+), 3/6: (-), 4/5(+), 7/8(-);
Product description: This DC48V-to-DC5V PoE Splitter working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device.
INQUIRY EMAIL

Description:
This DC48V-to-DC5V PoE Splitter working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.

Features:
● 10/100/1000Mbps POE Splitter;
● Power Input: DC44V-57V;
● Power Output: DC5V, 4A;
● Ports: RJ45(PoE) + RJ45(LAN) + DC Male Plug Interface;
● Network Speed: IEEE802.3at/af;
● Network Speed: 10/100/1000Mbps;
● Data Pin: 1/2: (+), 3/6: (-), 4/5(+), 7/8(-);
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Supports various DC Power Adapters and Solar Power Battery Packs.

Speicification:

1.0Gbps DC48V-to-DC5V/ DC12V/ DC24V POE Splitter
Model	CPOE-11G	CPOE-11GMU	CPOE-11GTC	CPOE-12G	CPOE-12G-24V
Ports	PoE (RJ45) + LAN (RJ45) + DC 5.5*2.1mm Interface
PoE Support	IEEE802.3at/af
Power Input	DC44V-57V	DC44V-57V	DC44V-57V	DC44V-57V	DC44V-57V
DC Output	DC12V, 2A	DC5V, 4A	DC5V, 4A	DC12V, 6A	DC24V, 3A

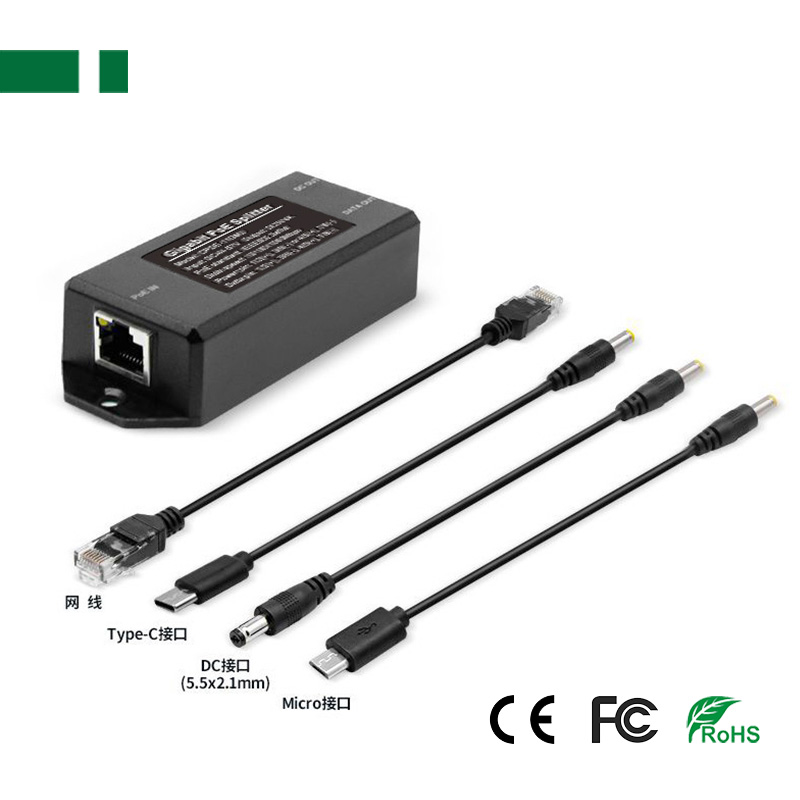

DC Cable	5.5*2.1mm DC Cable	DC-to-Micro USB Cable	DC-to-Type-C Cable	5.5*2.1mm DC Cable	5.5*2.1mm DC Cable
Data Speed	10/100/1000Mbps			10/100/1000Mbps
Data Pin	1/2(+), 3/6(-), 4/5(+), 7/8(-)			1/2(+), 3/6(-), 4/5(+), 7/8(-)
Power Pin	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Extend Distance	0~100M
Network Cable	Un-shielded or Shielded Cat5E, Cat6 or Better
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing			Metal Housing
