Surge Protector

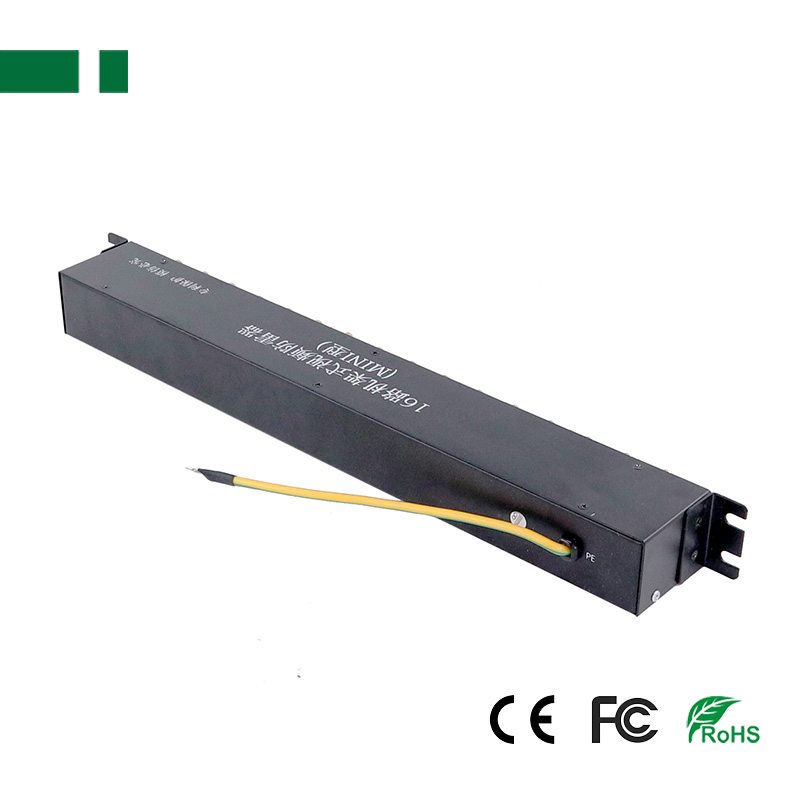

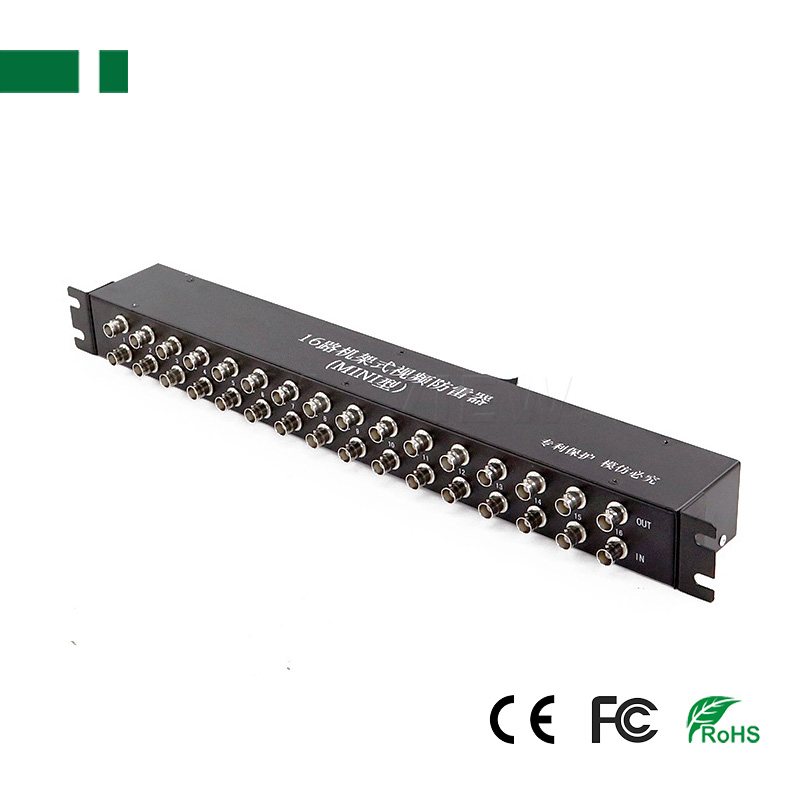

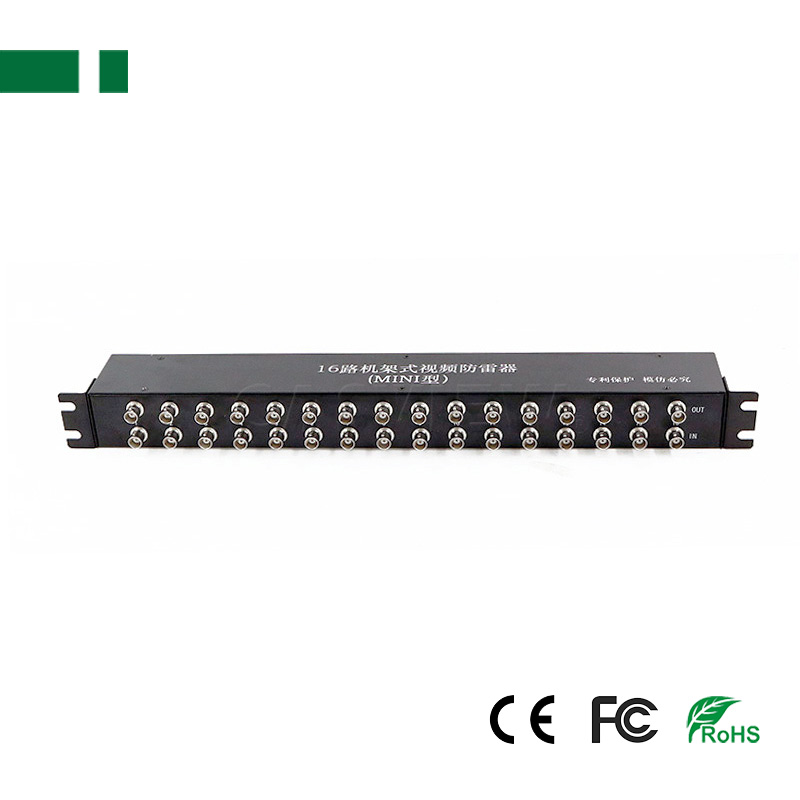

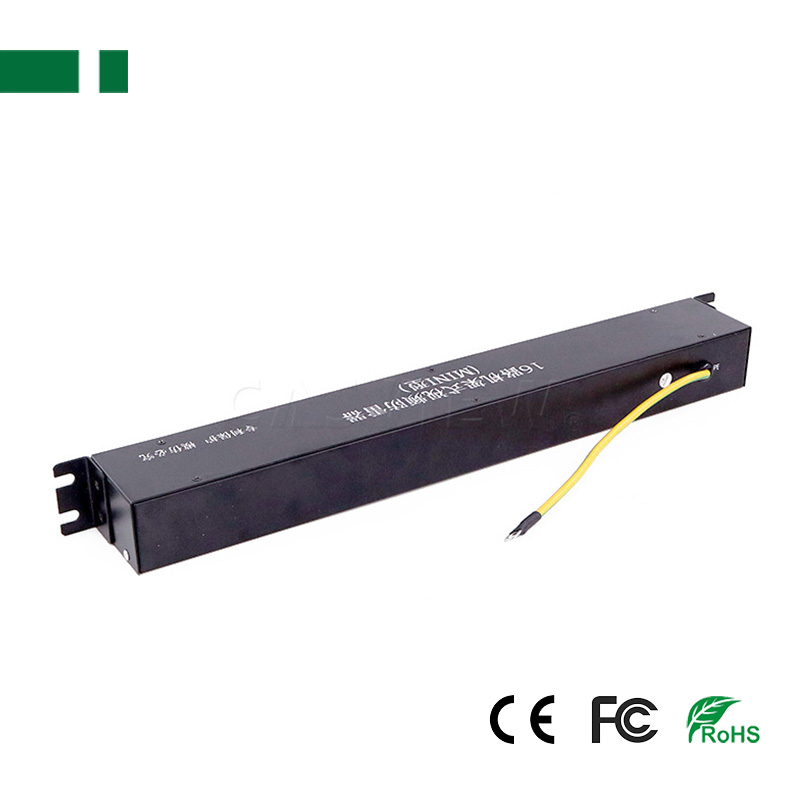

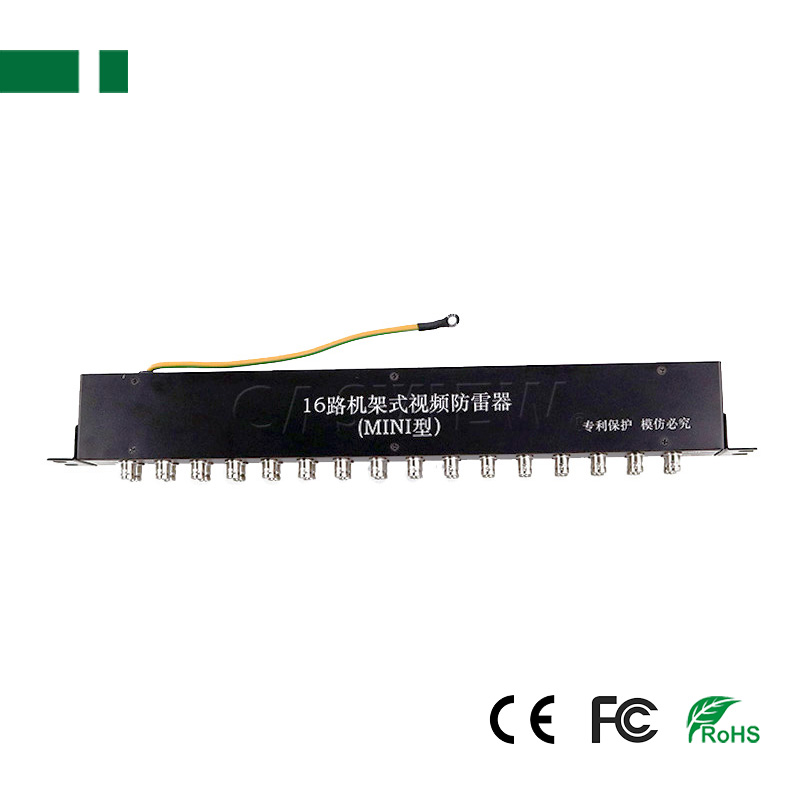

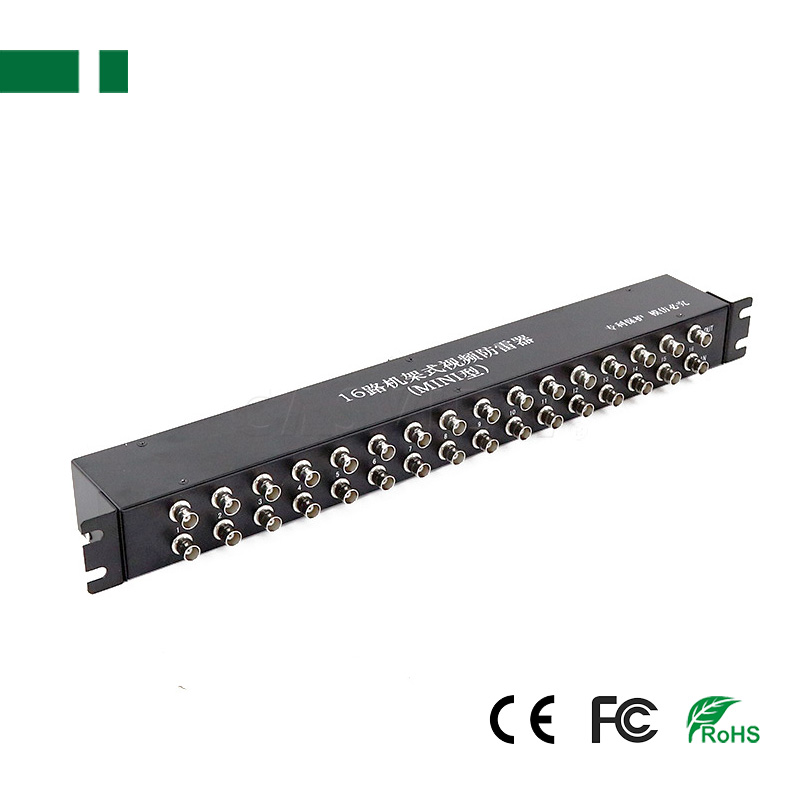

CSP01-16VM 16CHS HD-AHD CVI TVI Coaxial-cable Surge protector
- 16CHS HD-AHD CVI TVI Coaxial-cable Surge protector
- 1080P
- 16-way 19
- Product description: 16CHS HD-AHD CVI TVI Coaxial-cable Surge protector.For transmission via coaxial cable video and data signals over-voltage protection-related equipment. Protective equipment against induced over-voltag
16 Hd Ahd Cvi Tvi Coaxial-cable Surge Protector
Applicable scope
For transmission via Coaxial Cable video and data signals over-voltage protection-related equipment. Protective equipment against induced over-voltage, over-voltage and electrostatic discharge caused by damage.
Main features
1. Flow capacity, reaction speed triple SPD
2. Multi-level protection circuit, residual depression
3. Use the core components of international brand products, excellent performance
4. Take place through the special treatment to avoid signal interference
5. Small size, easy installation
Coaxial Video Surge Protector for coaxial data, and video signal protection, including coaxial communications equipment, monitoring equipment,10MThick and Thin Ethernet network signal surge protection. 16S to 16-way 19 "standard rack height of 1U.
Installation and maintained:
Input use to import and output use to export, join between grounded lead and grounded generator of lightning-proof system should be reliable. Add a protector between import and export in series.
Put protect as near to protected equipment as you can.
Protector no needs special care, if it is broken by high voltage or lighting, please replace it by new one
Applicable scope
For transmission via Coaxial Cable video and data signals over-voltage protection-related equipment. Protective equipment against induced over-voltage, over-voltage and electrostatic discharge caused by damage.
Main features
1. Flow capacity, reaction speed triple SPD
2. Multi-level protection circuit, residual depression
3. Use the core components of international brand products, excellent performance
4. Take place through the special treatment to avoid signal interference
5. Small size, easy installation
Coaxial Video Surge Protector for coaxial data, and video signal protection, including coaxial communications equipment, monitoring equipment,10MThick and Thin Ethernet network signal surge protection. 16S to 16-way 19 "standard rack height of 1U.
| Joint model | Input BNC |
| Output BNC | |
| Impedance | 75Ω |
| Max continual voltage | 5.5V |
| Max discharge current | 10kA |
| Response time | < 0.5ns |
| Bandwidth | 20 M |
| Joint wastage | < 0.5dB |
| Working temperature | -60℃ - +190℃ |
| Size | 1U 19 "=440*160*45MM |
Installation and maintained:
Input use to import and output use to export, join between grounded lead and grounded generator of lightning-proof system should be reliable. Add a protector between import and export in series.
Put protect as near to protected equipment as you can.
Protector no needs special care, if it is broken by high voltage or lighting, please replace it by new one
