Switch Power Supply

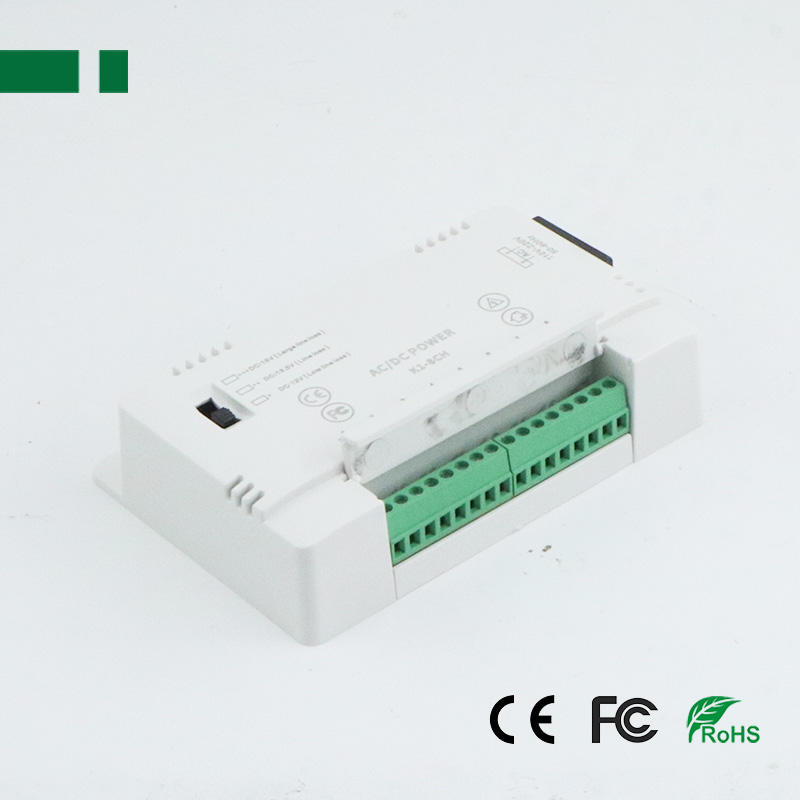

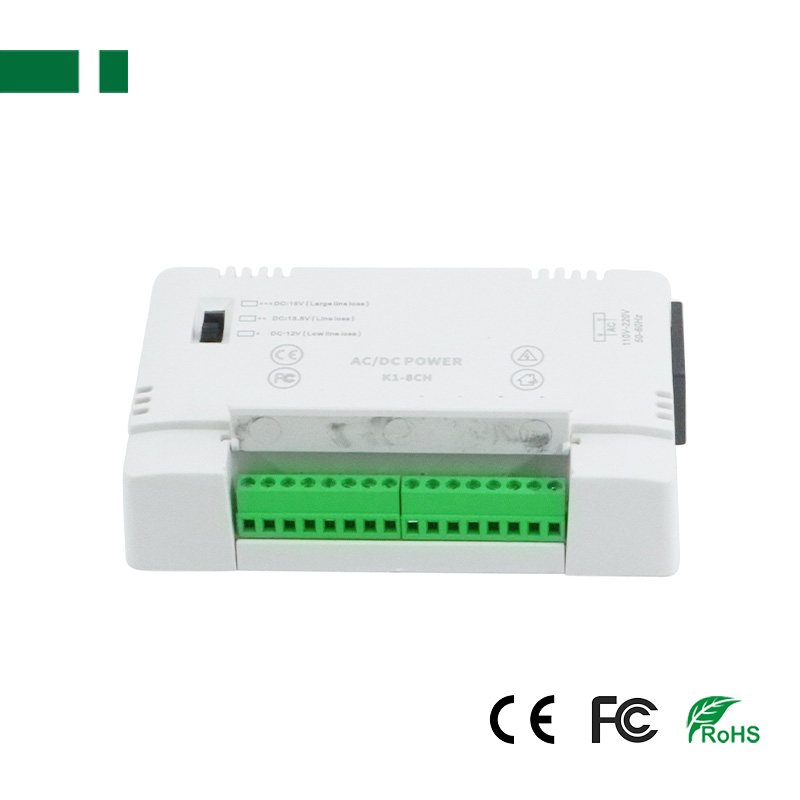

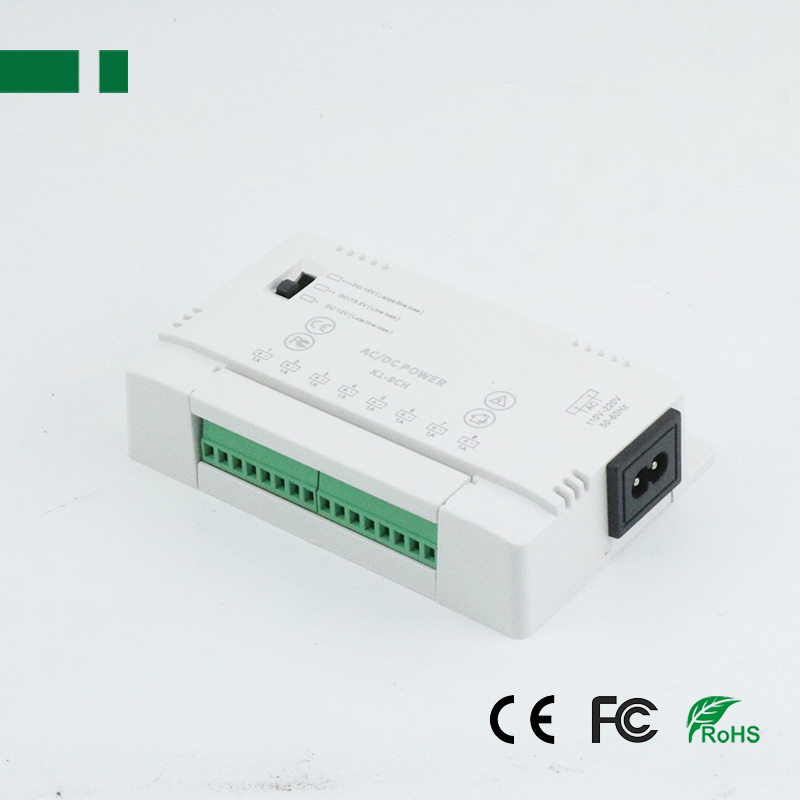

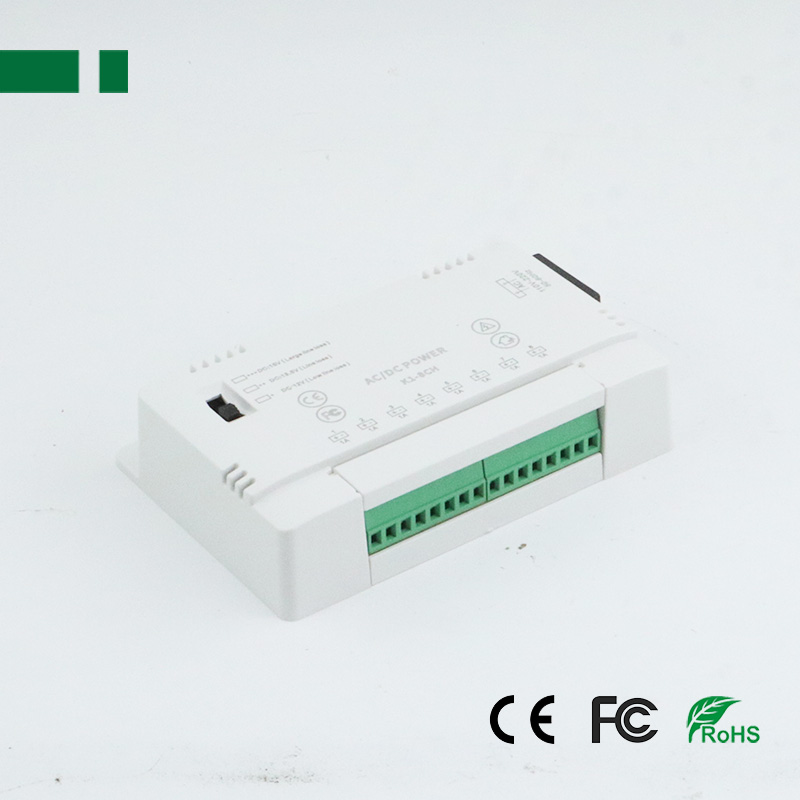

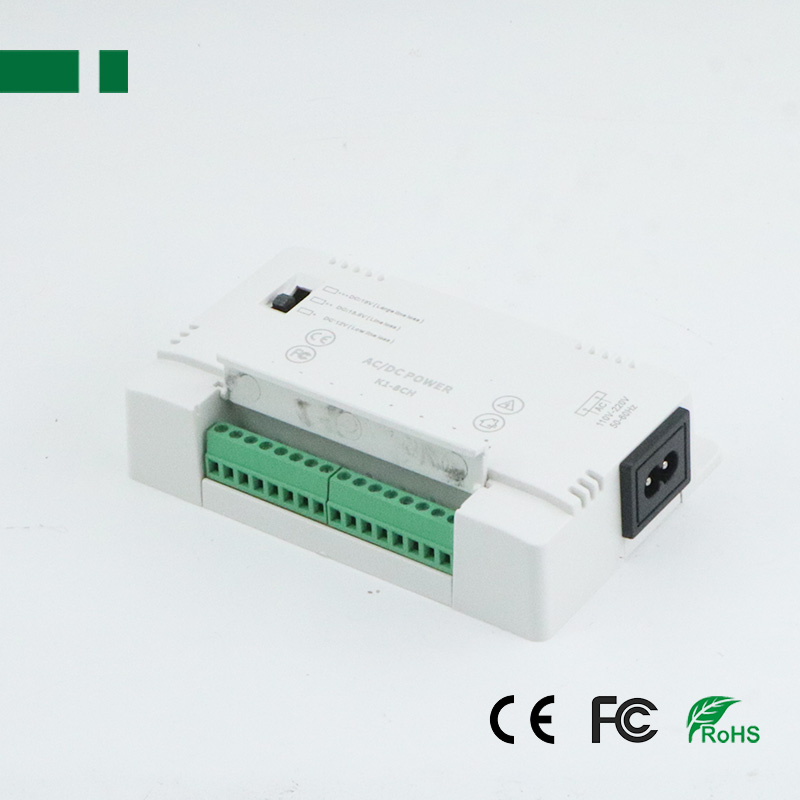

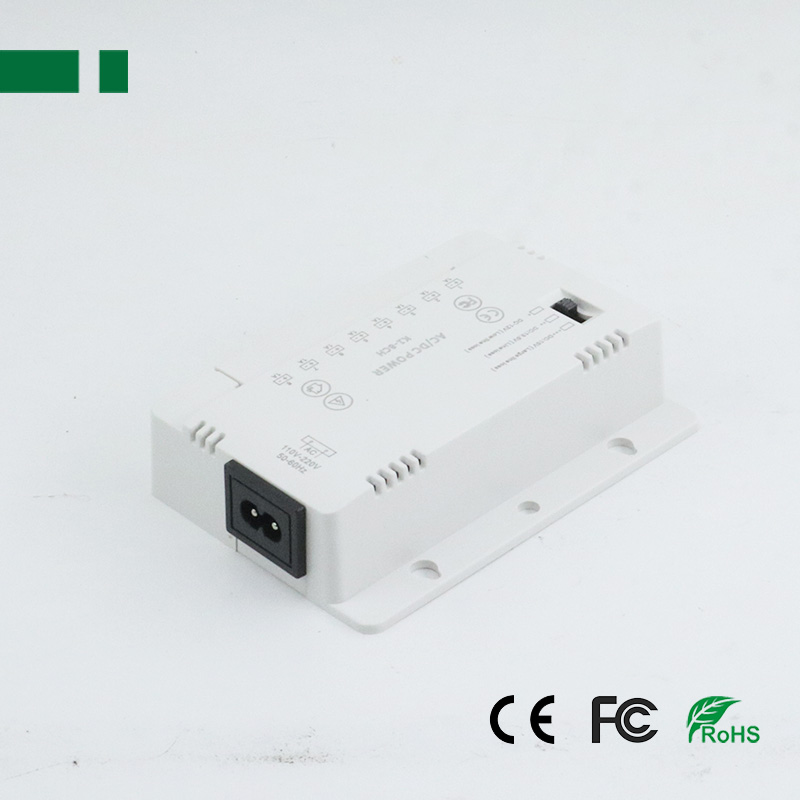

K1-8CH 8chs 120W DC12V SMPS Power adapter

K1-8CH 8chs 120W DC12V SMPS Power adapter

AC input: 110-230VAC 47-63Hz;
DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
EU/ US AC Cable.
Product description: ◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
INQUIRY EMAIL

8chs 120W DC12V SMPS Power Adapter;

Feature:
1. AC input: 110-230VAC 47-63Hz;
2. DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
3. Over current/short circuit/over voltage protection
4. Complies with certification standards of information technology products; good EMC performance
5. Compact size; applicable to cameras.
6. Size: 137*93*35mm(L*W*H).
7. EU/ US AC Cable.

Specification:

Model	K1-4CH	K1-8CH
Parameters	Switching Mode Power Supply
Appearance	White
Input	110-230VAC 47-63Hz
Output	12 VDC/1 A per channel
Cable Length Compensation	Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
Ripple & Noise	0.15 Vp-p (150 mV)
AC Input Connector	C4	C8
DC Output Connector	DC Plug: grid terminal
LED Indicator	Green
Operating Conditions	0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Storage Conditions	B-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Dimension	1379335mm(LWH)
