Universal Brackets & Junction Box

  • CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket
  • CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket
  • CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket
  • CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket
  • CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket
  • CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket
CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracketCB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracketCB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracketCB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracketCB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracketCB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket

CB-161A CB-161B CB-161C CB-161D CB-161E CB-161F CB-161G CB-161H L type monitoring hoisting bracket

  • Material: aluminum alloy
  • Color: White
  • Tube diameter: 38mm, Outlet: 15*20mm
  • Length: 200mm,300mm,400mm,500mm,600mm,800mm ,1000mm optional.
  • Product description: Monitoring duckbill gun machine stand aluminum alloy wall-mounted lifting bracket
  • INQUIRY   EMAIL

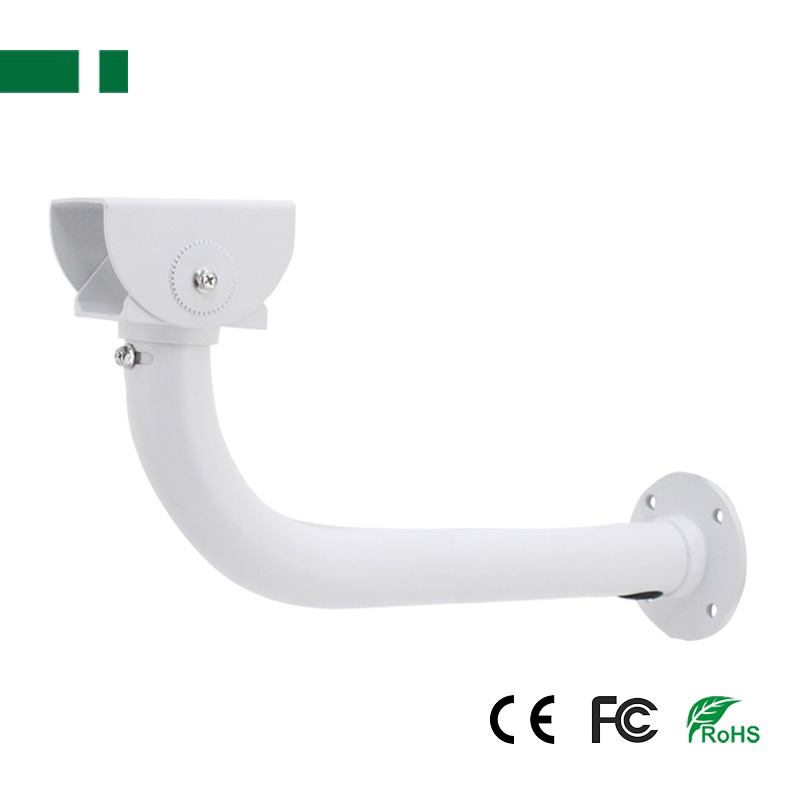

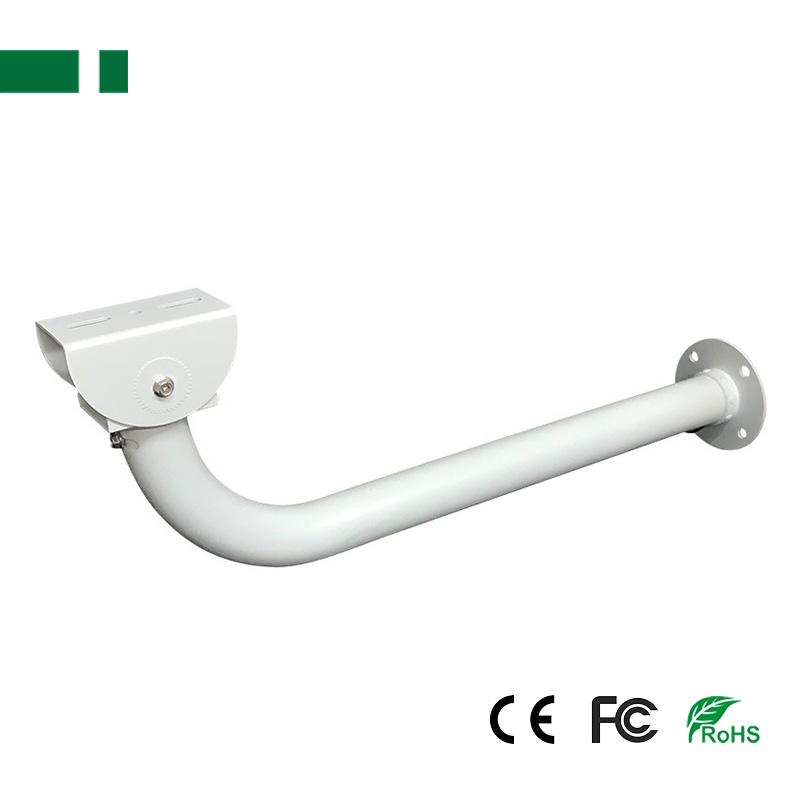

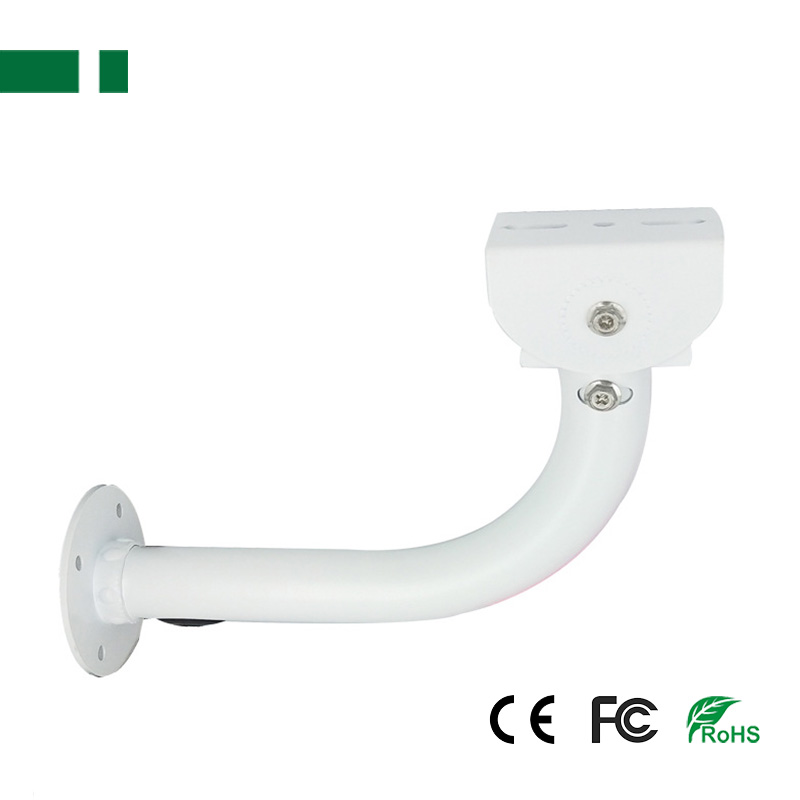

Product name: Monitoring duckbill gun machine stand aluminum alloy wall-mounted lifting Bracket

Feature:
Product name: L type monitoring hoisting bracket
Material: aluminum alloy
Color: White
Tube diameter: 38mm, Outlet: 15*20mm
Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)

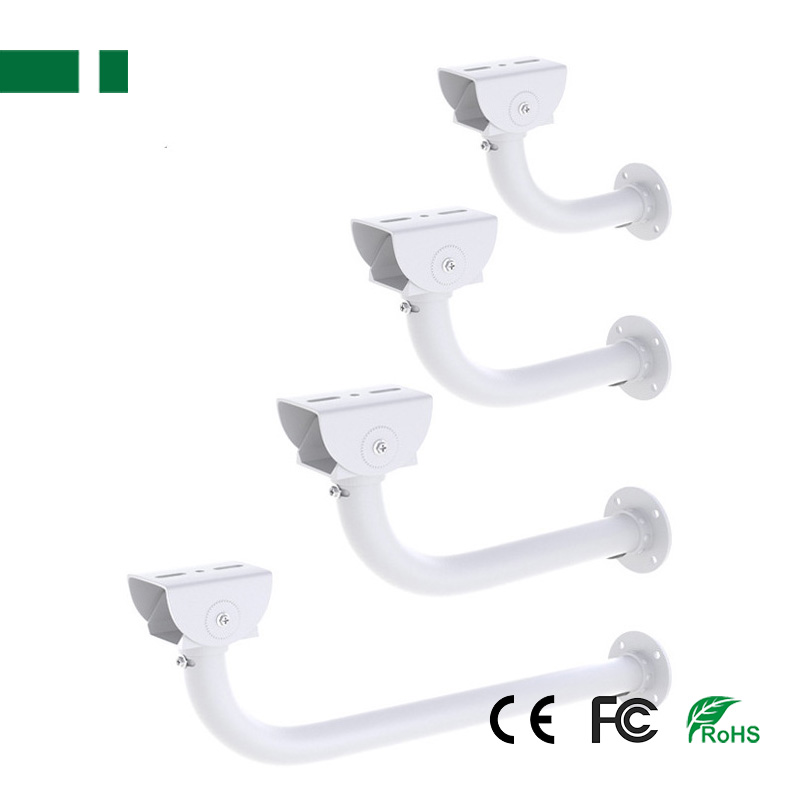

Length: 200mm,300mm,400mm,500mm,600mm,800mm ,1000mm optional.
It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.

Speicification:

Model CB-161A CB-161B CB-161D CB-161E CB-161F CB-161G CB-161H
Name "L" Shape Monitoring Hoisting Aluminum Bracket
Material Aluminum alloy
Installation Wall-mounted, Ceiling-mounted , Hoisting, Vertical installation
Applicable Outdoor & Indoor
Rotation Support up and down rotation 180°, left and right rotation 360°, the direction can be adjusted.
Length 2000mm 300mm 400mm 500mm 600mm 800mm 1000mm

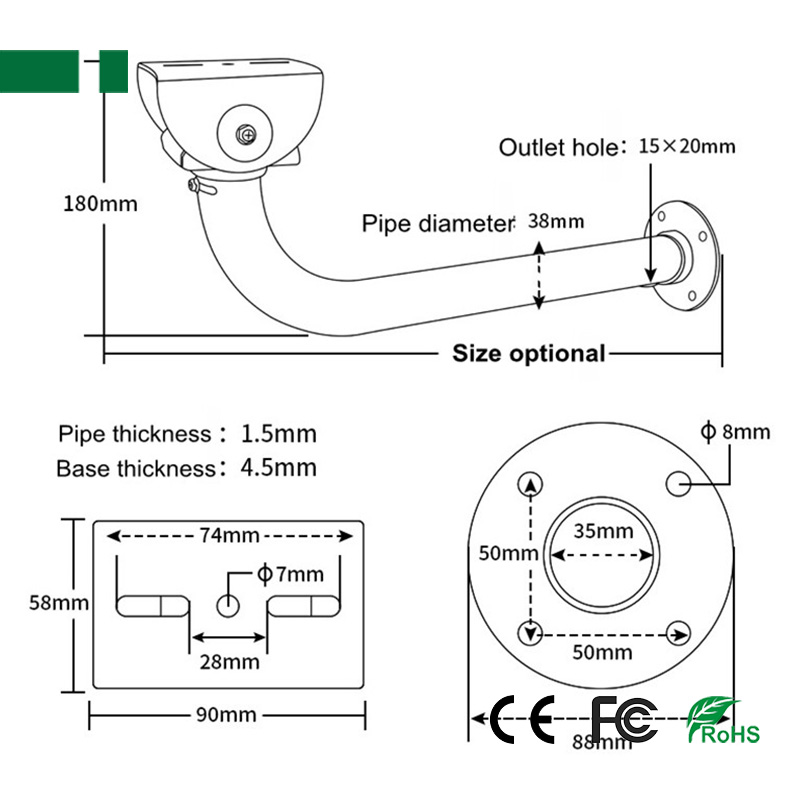

Fixed Base 88(D)mm
Clamp size 90(L)*58(W)mm
Tube diameter 38mm
Weight 400g 450g 515g 530g 545g 631g 780g

Package Including:
1pcs camera bracket

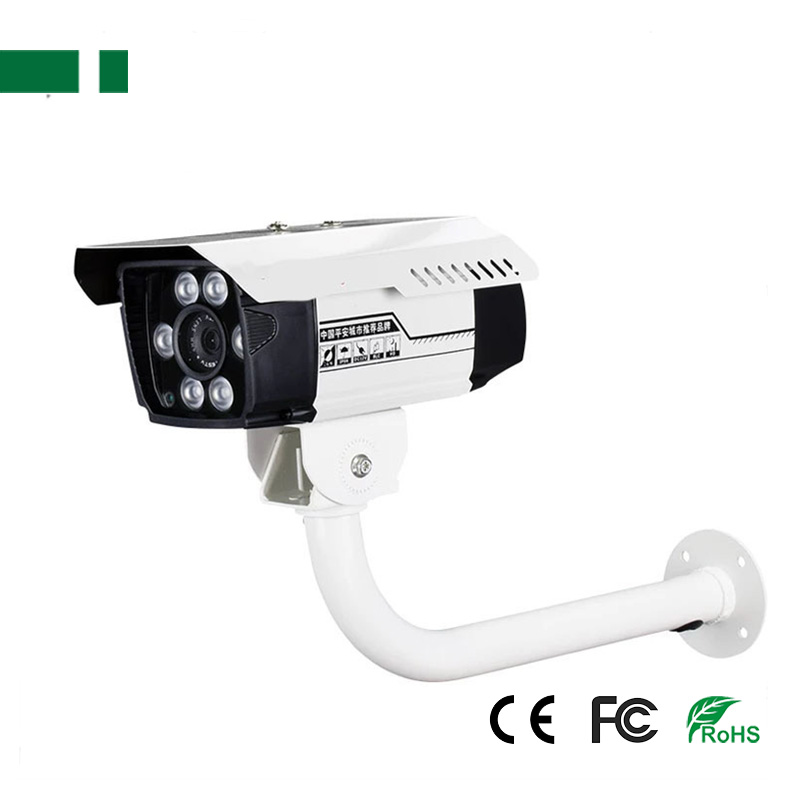

Warm prompt: Camera is not included in the package.

Disclaimer: The size is manually measured by hand, and there may be an error of 1-3MM.
