IP CCTV Tester

CIPC-16 Plus 4K H.265 IP & CVBS Android system IP Camera tester

CIPC-16 Plus 4K H.265 IP & CVBS Android system IP Camera tester

3.5 inch IPS touch screen, 480*320 resolution
8MP TVI/CVI/AHD camera test
H.265/H.264, 4K video display via mainstream
Dahua, Hikvision, Axis etc ONVIF camera test
Product description: The 3.5-inch touch screen IP camera tester is designed for maintenance and installation of IP and CVBS cameras as well as other security equipment.
INQUIRY EMAIL

3.5-inch 4K H.265 IP & CVBS Android system IP Camera tester

The 3.5-inch touch screen IP camera tester is designed for maintenance and installation of IP and CVBS cameras as well as other security equipment. The 480*320 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Feature:
● 3.5-inch IPS touch screen, 480*320 resolution
● 8MP TVI/CVI/AHD camera test
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Built in WIFI, create WIFI hotspot
● Rapid ONVIF, auto view video and create testing report
● Tester Play: Tester, mobile phone, PC display at the same time

Specification:

Model	CIPC-16 Plus
Display	New 3.5 inch wide angle touch screen ,480*320 resolution
Video Mode	1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
PTZ control	PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
Coaxial HD test	8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
	8MP CVI camera test: 3840 x 2160P 12.5/15 FPS,UTC control /call OSD menu
	8MP AHD camera test: 3840 x 2160P 15 FPS, UTC control /call OSD menu
IP camera test	IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
Rapid Video	Auto view the video, create testing report
Hik test tool	pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool	Dahua camera test, modify the user name, password and IP parameters
IP& CVBS test	IP& CVBS test at the same time ,converter test from analog to digital with dual test window
Zoom Image	4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Network Port	10/100/1000M auto adapt, RJ45
Power output	DC 12V 1A power output, supply temporarily power for the camera
TesterPlay	screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone)
Network test	Trace route, Link monitor , DHCP server, port flashing , Ping test
Wi-Fi	Built in WIFI,speeds150M,display wireless camera image
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor	Captures and analyzes the command data from controlling device，also can send hexadecimal
Drop-down menu	You can select CVBS ,IP setting, LAN info etc in any interface
External power supply	DC 5V 2A
Battery	Built-in 3.7V Lithium polymer battery ,3500mAh
Rechargeable	After charging 3-4 hours, normal working time 8 hours
Operation setting	OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off	1-30 (mins)
Working Temperature	-10℃---+50℃
Working Humidity	30%-90%

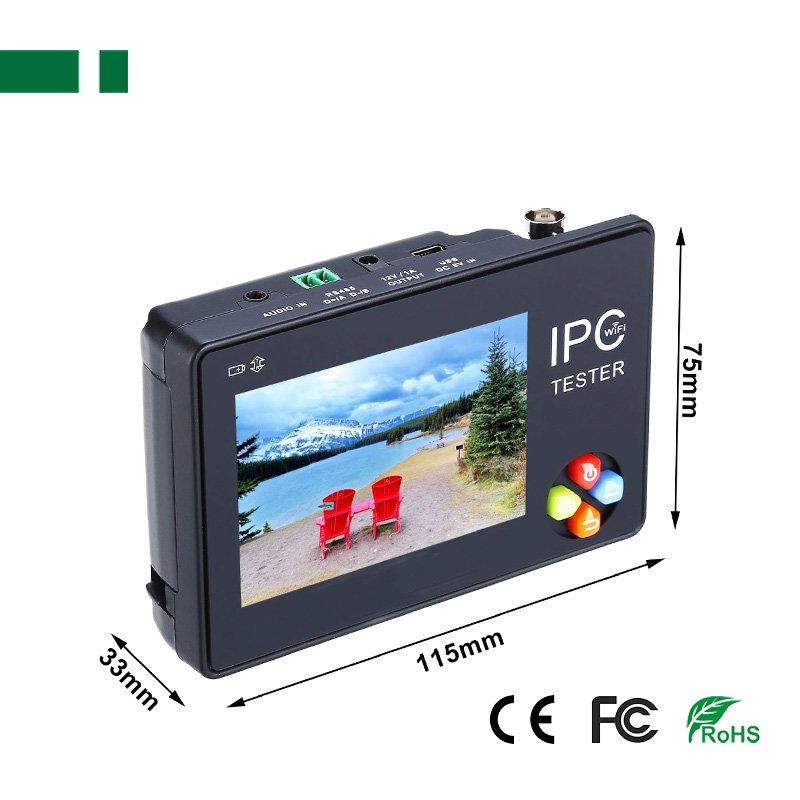

Dimension/Weight	115mm x 75mm x 33mm / 300g
