CIPC-18ADH PLUS 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

CIPC-18ADH PLUS 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test
H.265/H.264, 4K video display via mainstream
DC12V 3A, DC48V PoE power output
Built in WIFI, create WIFI hotspot
Product description: The 4-inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment.
INQUIRY EMAIL

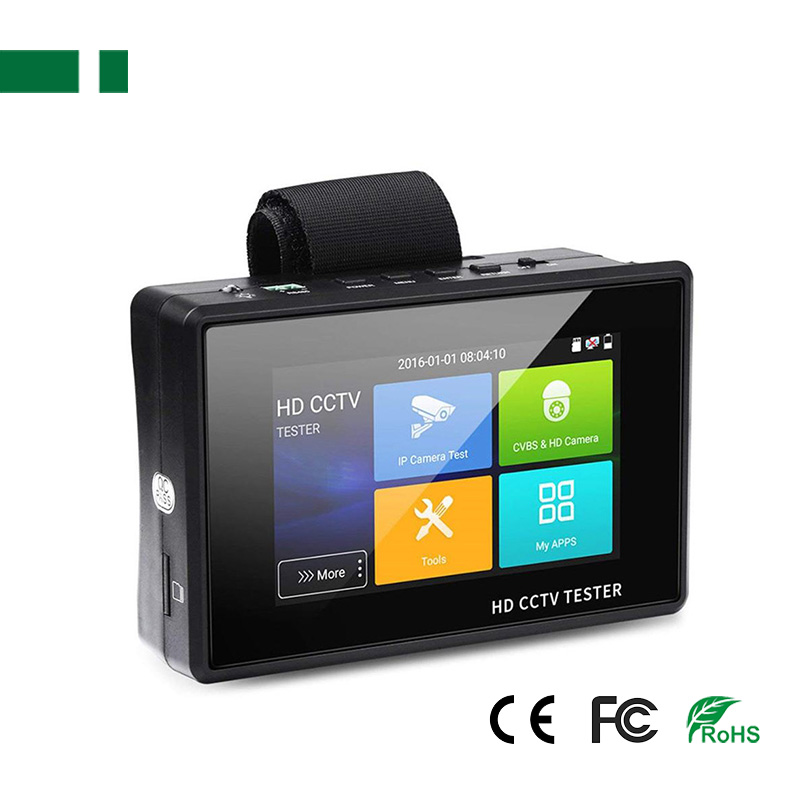

4 inch wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing.

Feature:
● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report
● DC12V 3A, DC48V PoE power output
● Built in WIFI, create WIFI hotspot
● RJ45 cable TDR test,cable quality test
● Wrist design, portable and easier to carry
● 10/100/100M Ethernet, network state and traffic display

Specification:

LCD	Item series	CIPC-18ADH PLUS
	Display	New 4 inch IPS touch screen , 800*480 resolution
Video Mode	CVBS	1 channel BNC input, NTSC/PAL (Auto adapt)
		PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
	IP camera test	IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
	4K/H.265/H.264	Rapid Video	Auto view the video, create testing report
		Hik test tool	pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
		Dahua test tool	Dahua camera test, modify the username, password and IP parameters
	Coaxial HD test	8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
		8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu
		8MP AHD test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
	Zoom Image	4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
	12V/3A power	Output DC12V/3A power out, supply temporarily power for the camera
Power output	PoE power output	48V PoE power output, max power 25.5W
Network test	Link monitor,port flashing, Ping test
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor	Captures and analyzes the command data from controlling device, also can send hexadecimal
Drop-down menu	You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface
External power supply	DC 12V 1A
Battery	Built-in 7.4V Lithium polymer battery , 2400mAh
Rechargeable	After charging 4~5 hours, normal working time 8 hours
Operation setting	OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off	1-30 (mins)
Working Temperature	-10℃---+50℃
Working Humidity	30%-90%
Dimension/Weight	126mm x 83mm x 33mm / 0.32kg
