CVFL01-10MW Fiber Optical Cable Tester Pen for FC SC ST

CVFL01-10MW Fiber Optical Cable Tester Pen for FC SC ST

10MW Fiber Optical Cable Tester Pen for FC SC ST
Output Wavelength: 650nm±10nm
Optical Connector: SC/FC/ST compatible

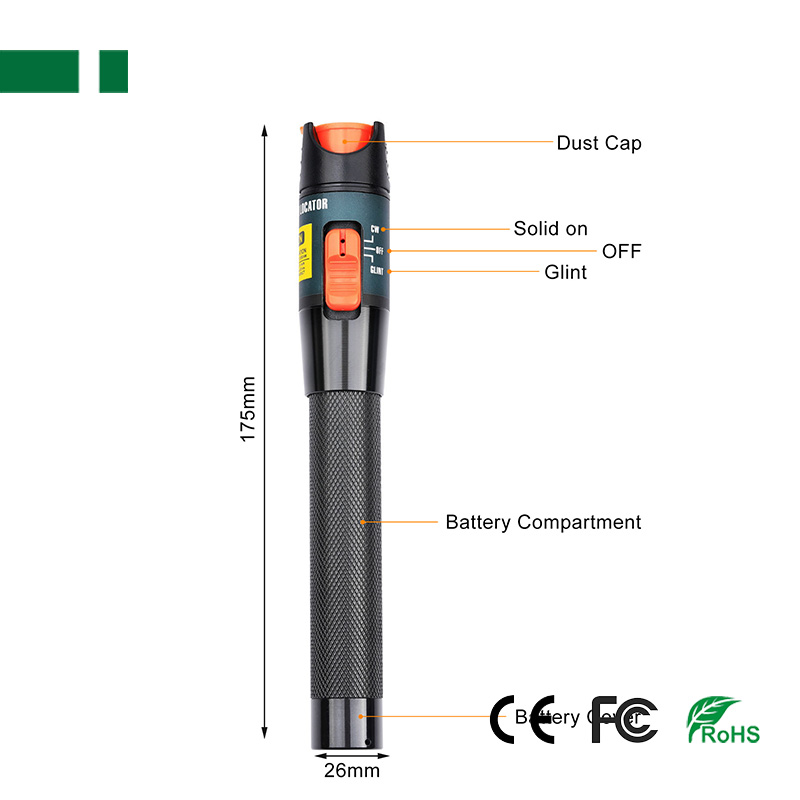

Dimension: 175*26*26mm
Product description: 5mW/10mW/15mW/20mW/30mW/50mW VFL(Visual Fault Locator) Fiber Optical Cable Tester Pen for FC/ SC/ ST Connector
INQUIRY EMAIL

10mW VFL(Visual Fault Locator) Fiber Optical Cable Tester Pen for FC/ SC/ ST Connector

Feature:
1. User-Friendly Calibration: Easy calibration with a user-friendly interface, ensuring precise optical fiber identification.
2. Adjustable Laser Power: Versatile power range from 5MW to 60MW for precise fiber optic testing across various distances.
3. Extensive Transmission Distance: Optimized for long-distance fiber optic testing, supporting 5km to 60km transmission.
4. Durable Aluminum Alloy Build: Robust aluminum alloy body withstands tough environments, ensuring long-term reliability.
5. Wide Connector Compatibility: SC/FC/ST compatible, this tester caters to diverse fiber optic connectivity needs.

Specification:

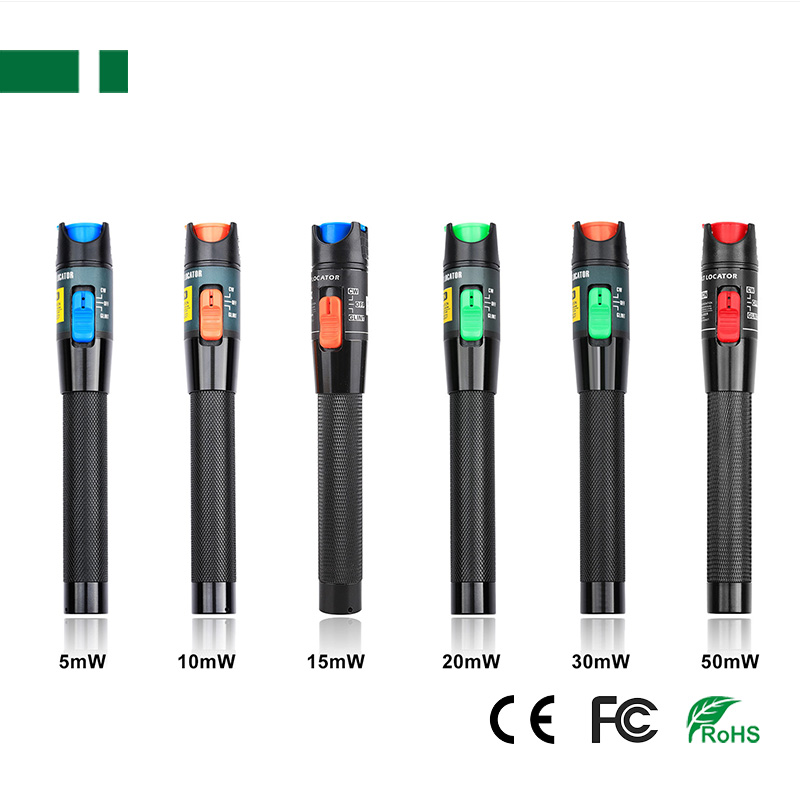

Name	5mW/ 10mW/ 15mW/ 20mW/ 30mW/ 50mW Fiber Optic Tester Pen
Model	CVFL01-5MW	CVFL01-10MW	CVFL01-15MW	CVFL01-20MW	CVFL01-30MW	CVFL01-50MW
Output Optical Power	5mW	10mW	15mW	20mW	30mW	50mW
Effective Distance	5KM	10KM	15KM	20KM	30KM	50KM
Output Wavelength	650nm±10nm

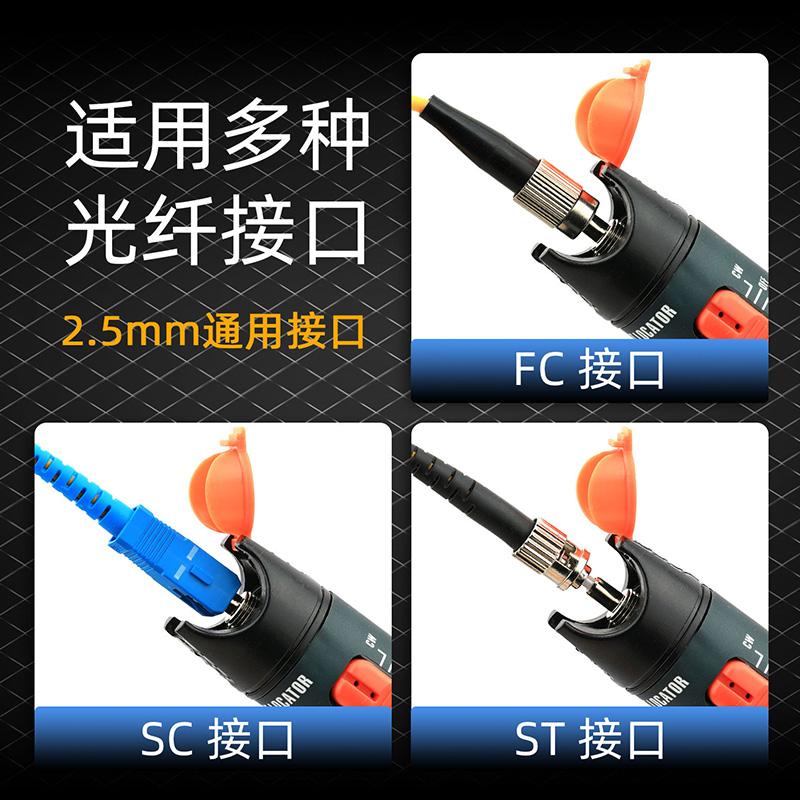

Fiber Optic Adapter	2.5mm universal interface, Support FC/SC/ST Connector
Material	Aluminum Alloy
Temperature	Service: 0~+60℃, Storage: -20℃-+70℃
Battery Type	Alkaline Battery(2 AA 1.5V batteries)
Battery Operating Time	40hours
Dimension	1752626mm
Weight	150g
