Testing Equipments
CVFL-A35 Dry Battery Fiber Optic Identifier Live with Built in 10mw Visual Fault Locator
- Dry Battery Fiber Optic Identifier Live with Built in 10mw Visual Fault Locator
- Adaptive fiber type: general 0.25 (bare fiber)/0.9/2.0/3.0 optical fiber
- Wavelength recognition range: 800 - 1700nm
- Identify signal frequency: CW, 270Hz±5%, 1kHz±5%, 2kHz±5%
- Product description: Optical Fiber Recognition Instrument: Comes with red light and LED lights to meet the needs of the work, Can identify 3 kinds of signal frequencies: 270Hz/ 1KHz/ 2KHz;
9V Alkaline Dry Battery Fiber Optic Identifier Live with Built in 10mw Visual Fault Locator
Description
1. Optical Fiber Recognition Instrument: Comes with red light and LED lights to meet the needs of the work, high-efficiency line measurement, easy to operate;

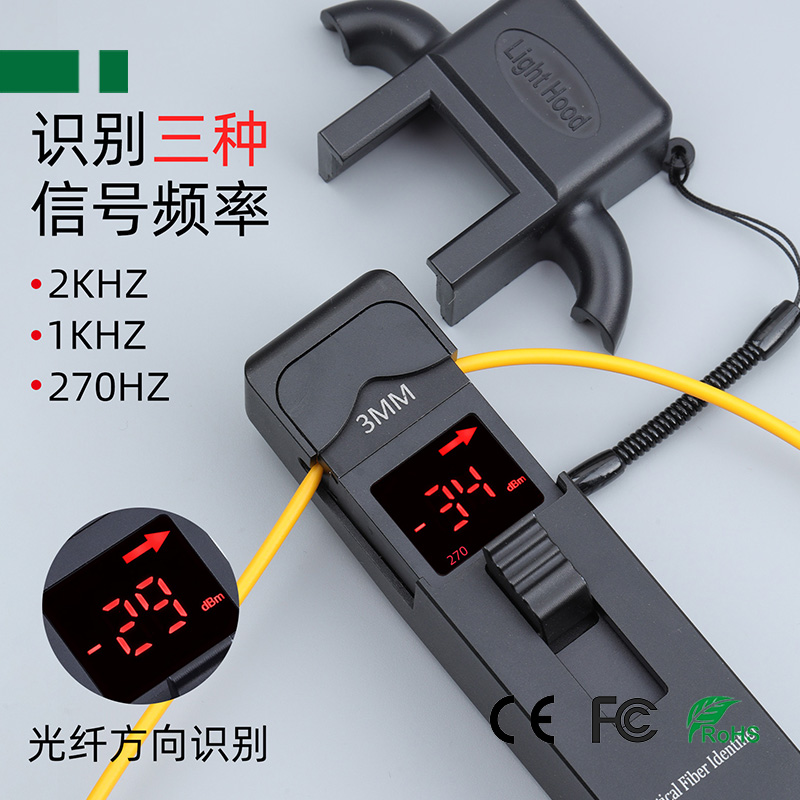

2. Can identify 3 kinds of signal frequencies: there is a buzzer sound when identifying the frequency 270Hz/ 1KHz/ 2KHz;

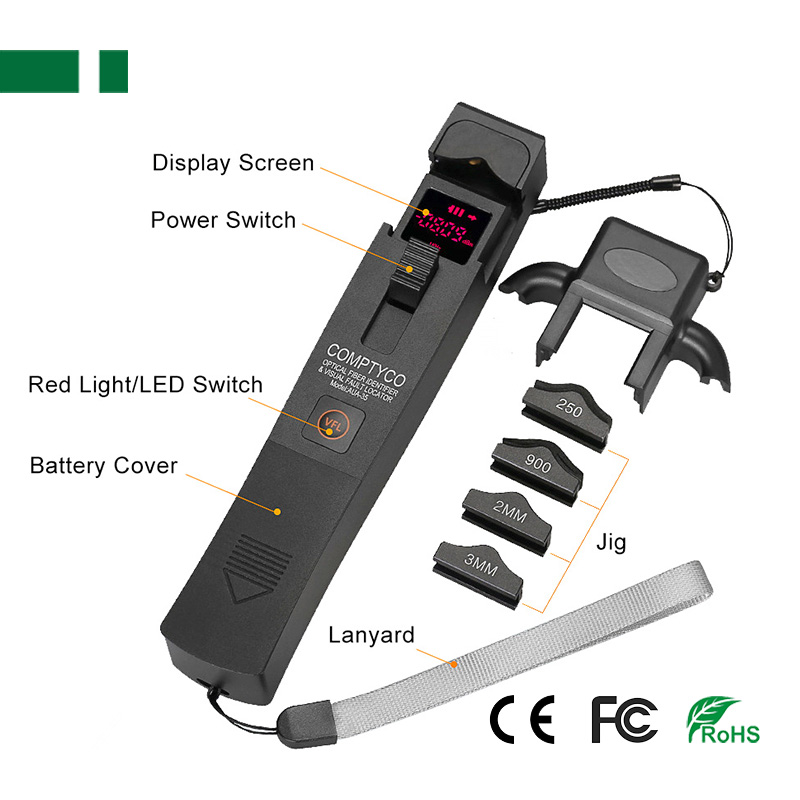

3. Universal fixture: suitable for 0.25mm/0.9mm/2.0mm/3.0mm online test without changing the fixture;
4. Single-mode and multi-mode universal: can be detected anywhere in single-mode and multi-mode fibers;

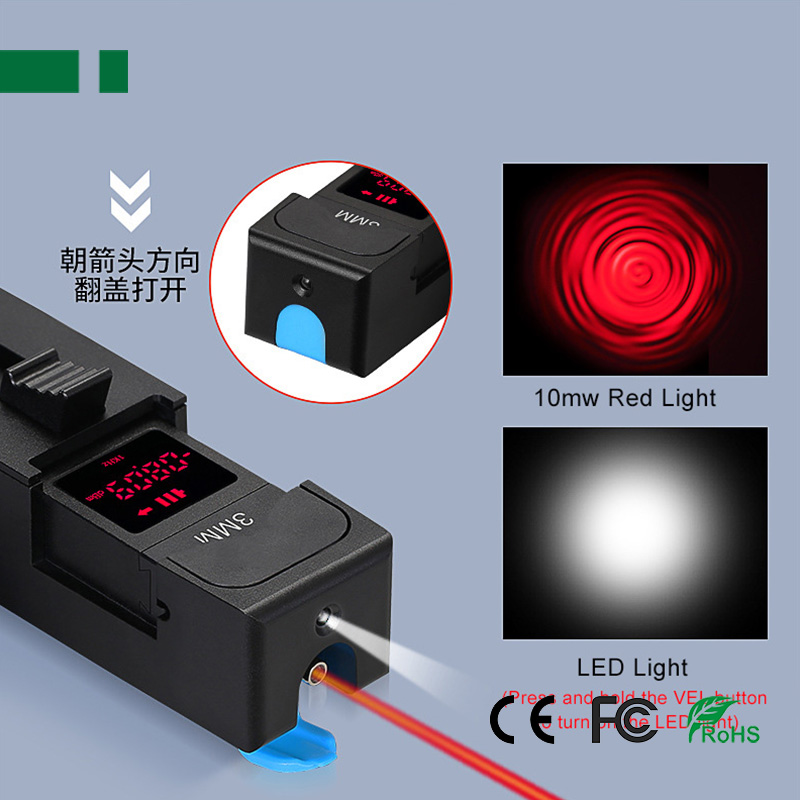

5. Equipped with high-brightness LED lighting, with stable light and strong light source, it is convenient for line inspection and construction in dark environments. Fiber penetration test distance up to 10KM.
Feature:
1. Name: Optical Fiber Identifier & Visual Fault Locator;
2. Adaptive fiber type: general 0.25 (bare fiber)/0.9/2.0/3.0 optical fiber jumper;
3. Wavelength recognition range: 800 - 1700nm;
4. Identify signal frequency: CW, 270Hz±5%, 1kHz±5%, 2kHz±5%;
5. Accuracy: +10dB ~ -30dBm (continuous wave); +10dB ~ -25dBm (modulation signal);
6. Signal direction: signal lamp display;
7. Detector type: (diameter) 1mm InGaAs 2pcs;
8. VFL test wavelength: 650nm±10nm, VFL output power: > 10mw;
9. Power Supply: 9V Alkaline Battery;
10. Automatic shutdown: support;
11. Voice indication: support;

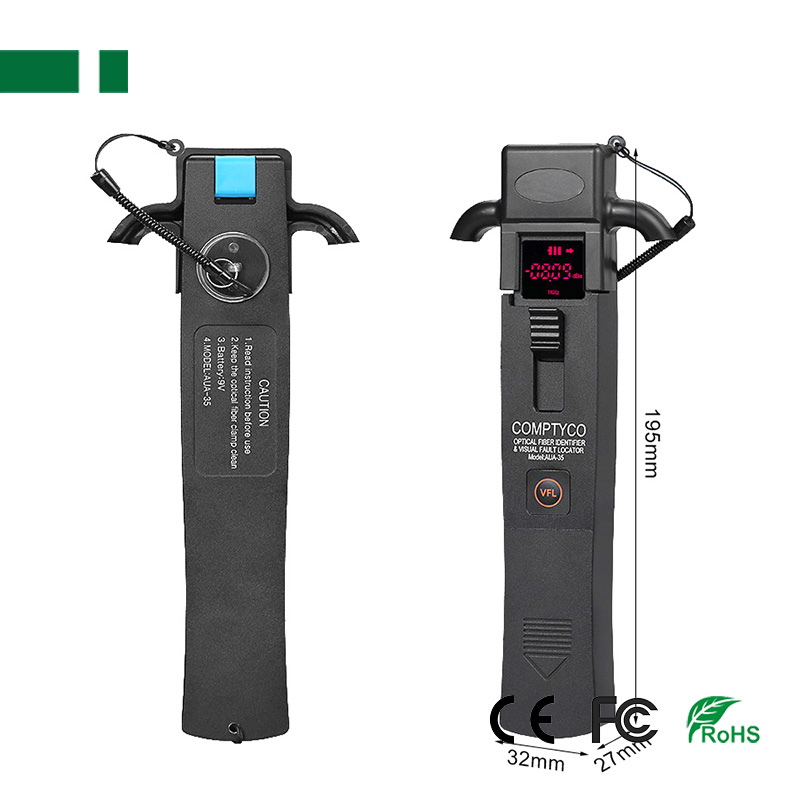

12. Size: 199*34*28mm, Weight: 270g.
Specification:
Package Included:

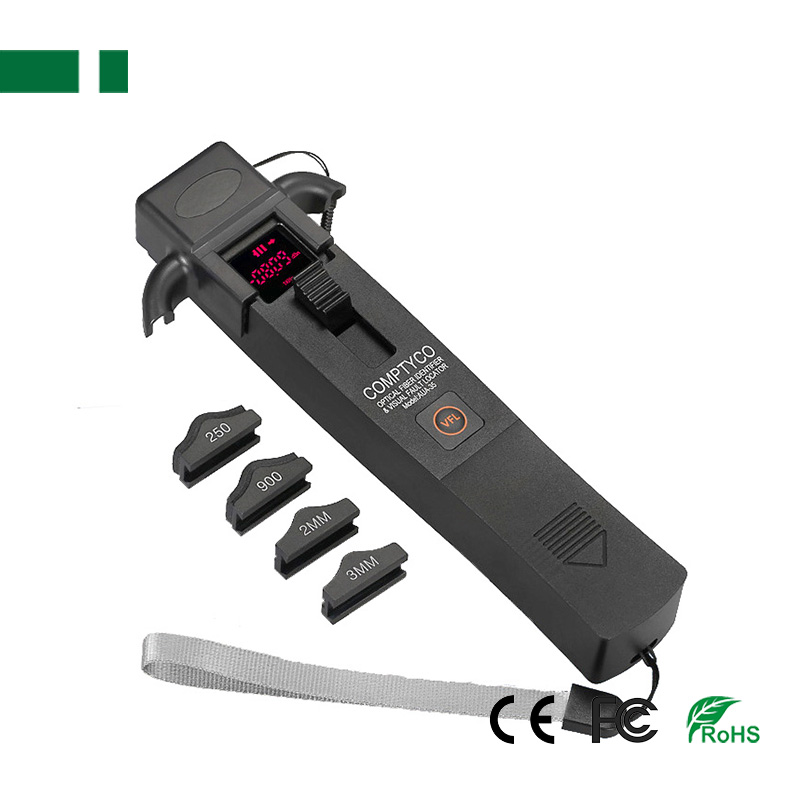

- 1 x Optical Fiber Identifier
- 1 x Storage Bag
- 1 x User Manual
Description
1. Optical Fiber Recognition Instrument: Comes with red light and LED lights to meet the needs of the work, high-efficiency line measurement, easy to operate;
2. Can identify 3 kinds of signal frequencies: there is a buzzer sound when identifying the frequency 270Hz/ 1KHz/ 2KHz;
3. Universal fixture: suitable for 0.25mm/0.9mm/2.0mm/3.0mm online test without changing the fixture;
4. Single-mode and multi-mode universal: can be detected anywhere in single-mode and multi-mode fibers;
5. Equipped with high-brightness LED lighting, with stable light and strong light source, it is convenient for line inspection and construction in dark environments. Fiber penetration test distance up to 10KM.
Feature:
1. Name: Optical Fiber Identifier & Visual Fault Locator;
2. Adaptive fiber type: general 0.25 (bare fiber)/0.9/2.0/3.0 optical fiber jumper;
3. Wavelength recognition range: 800 - 1700nm;
4. Identify signal frequency: CW, 270Hz±5%, 1kHz±5%, 2kHz±5%;
5. Accuracy: +10dB ~ -30dBm (continuous wave); +10dB ~ -25dBm (modulation signal);
6. Signal direction: signal lamp display;
7. Detector type: (diameter) 1mm InGaAs 2pcs;
8. VFL test wavelength: 650nm±10nm, VFL output power: > 10mw;
9. Power Supply: 9V Alkaline Battery;
10. Automatic shutdown: support;
11. Voice indication: support;
12. Size: 199*34*28mm, Weight: 270g.
Specification:
| Name | Optical Fiber Identifier Visual Fault Locator | ||
| Model | CVFL-40A | CVFL-40D | CVFL-A35 |
| Wavelength Recognition Range | 800nm~1700nm | ||
| Fiber Line Type | 3.0nm/ 2.0nm/ 0.9nm/ 0.25nm | ||
| Signal Direction | Signal Light Display | ||
| Identify Signal Frequency | 270Hz/ 1KHz/ 2KHz/ | ||
| Accuracy | Continuous Wave: +10dB~-30dBm, Modulated Signal: +10dB~-25dBm | ||
| Sensitivity Range | 10~-50dBm | ||
| Voice Prompt | Yes | ||
| Automatic Shutdown | Yes | ||
| Output Wavelength | 650±10nm | ||
| VFL Output Power | >10mw | ||
| Battery Type | 2 AA 1.5V Alkaline Battery | Built-in Rechargeable Battery | 9V Alkaline Battery |
| Temperature | Service: 0~+60℃, Storage: -20℃-+70℃ | ||
| Battery Operating Time | 40hours | ||
| Dimension | 240*47*29mm | 240*47*29mm | 199*34*28mm |
| Weight | 180g | 170g | 270g |
Package Included:
- 1 x Optical Fiber Identifier
- 1 x Storage Bag
- 1 x User Manual
